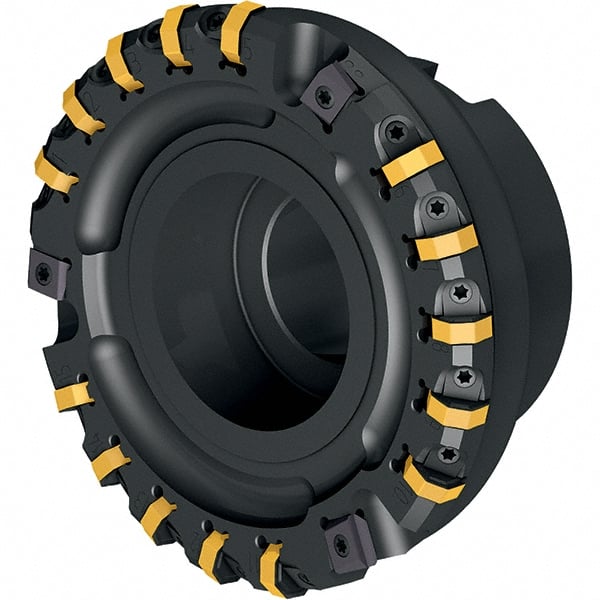

Walter - 21 Inserts, 159.99mm Cut Diam, 40.01mm Arbor Diam, 8.41mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 62.99mm High, OHNF050408. Insert Compatibility, Through Coolant, Series M2025
Item #: 47090535
Brand: Walter
Model #: 6625056
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 159.99 |
| Cutting Diameter (Decimal Inch) | 6.2990 |
| Arbor Hole Diameter (mm) | 40.01 |
| Arbor Hole Diameter (Decimal Inch) | 1.5750 |
| Lead Angle | 90 |
| Overall Height (mm) | 62.99 |
| Overall Height (Decimal Inch) | 2.4800 |
| Insert Compatibility | OHNF050408. |
| Series | M2025 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 8.41 |
| Maximum Depth of Cut (Decimal Inch) | 0.3310 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 21 |
| Insert Holding Method | Screw/Clamp |
| Number of Flutes | 21 |
| Number of Adjustable Pockets | 3 |
| Maximum RPM | 10000 |
