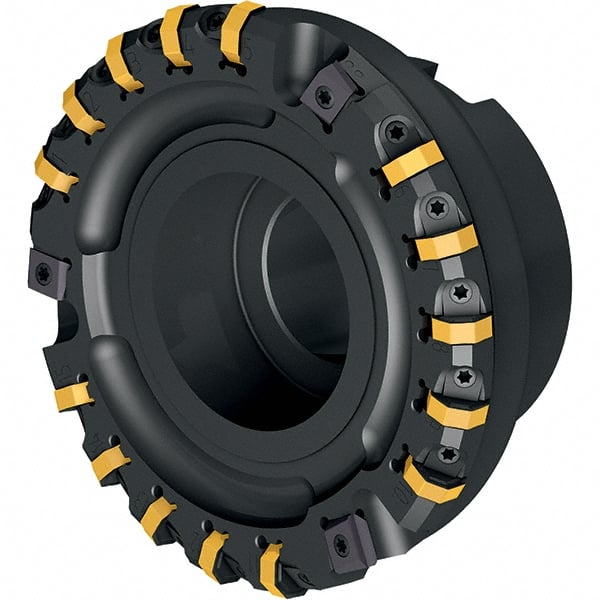

Walter - 15 Inserts, 100mm Cut Diam, 32mm Arbor Diam, 8.41mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 50.01mm High, OHNF050408. Insert Compatibility, Through Coolant, Series M2025
Item #: 47090543
Brand: Walter
Model #: 6625054
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Cutting Diameter (Decimal Inch) | 3.9370 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2600 |
| Lead Angle | 90 |
| Overall Height (mm) | 50.01 |
| Overall Height (Decimal Inch) | 1.9690 |
| Insert Compatibility | OHNF050408. |
| Series | M2025 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 8.41 |
| Maximum Depth of Cut (Decimal Inch) | 0.3310 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 15 |
| Insert Holding Method | Screw/Clamp |
| Number of Flutes | 15 |
| Number of Adjustable Pockets | 3 |
| Maximum RPM | 10000 |
