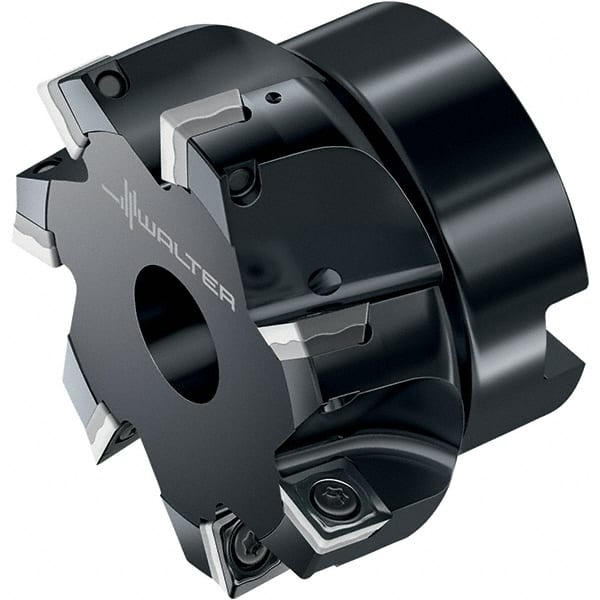

Walter - 6 Inserts, 80.01mm Cut Diam, 27mm Arbor Diam, 8.41mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 50.01mm High, SD.W09T3.. Insert Compatibility, Through Coolant, Series M4132
Item #: 47090550
Brand: Walter
Model #: 6556155
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.01 |
| Cutting Diameter (Decimal Inch) | 3.1500 |
| Arbor Hole Diameter (mm) | 27.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Lead Angle | 90 |
| Overall Height (mm) | 50.01 |
| Overall Height (Decimal Inch) | 1.9690 |
| Insert Compatibility | SD.W09T3.. |
| Series | M4132 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 8.41 |
| Maximum Depth of Cut (Decimal Inch) | 0.3310 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Number of Flutes | 6 |
| Maximum RPM | 21200 |
