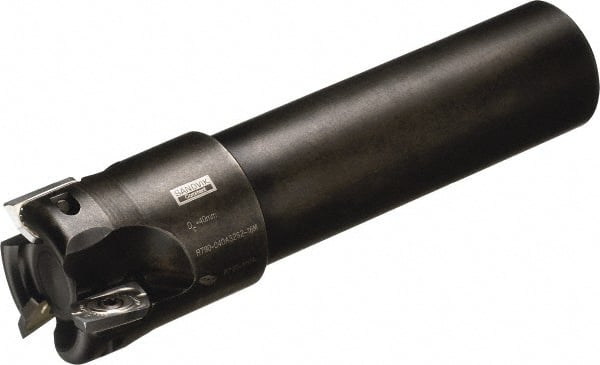

Sandvik Coromant - 25mm Cut Diam, 12mm Max Depth of Cut, 25mm Shank Diam, 4.9213" OAL, Indexable Square Shoulder End Mill - Multiple Insert Styles, Cylindrical Shank, 90° Lead Angle, Through Coolant, Series CoroMill 790
Item #: 47106893
Brand: Sandvik Coromant
Model #: 5747275
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Cutting Diameter (Decimal Inch) | 0.9844 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9844 |
| Overall Length/Projection (Decimal Inch) | 4.9213 |
| Lead Angle | 90 |
| Series | CoroMill 790 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | R790-025A25S2-16L |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 1.9685 |
| Weldon Flat | No |
| Insert Compatibility | R790-160405H-NM; R790-160405PH-NL; R790-160405PH-NM; R790-160408PH-NL; R790-160408PH-NM; R790-160408PH-PL; R790-160416H-NM; R790-160416PH-NL; R790-160416PH-NM; R790-160416PH-PL; R790-160420H-NM; R790-160420PH-NL; R790-160420PH-NM; R790-160420PH-PL; R790-1 |
| Shank Length (Decimal Inch) | 2.9528 |
| Maximum RPM | 60300 |
| Toolholder Material | Steel |
