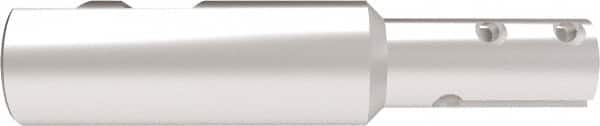

Allied Machine and Engineering - 1.116" Cut Diam, 1-1/2" Max Depth of Cut, 1" Shank Diam, Internal/External Indexable Thread Mill - Insert Style TN150K, 1-1/2" Insert Size, 3 Inserts, Toolholder Style TNR, 4-1/2" OAL
Item #: 47118930
Brand: Allied Machine and Engineering
Model #: TNR-1116-3F150
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.1160 |
| Maximum Hole Depth (Decimal Inch) | 1.5000 |
| Insert Style | TN150K |
| Insert Size (Decimal Inch) | 1.5000 |
| Toolholder Style | TNR |
| Shank Diameter (Decimal Inch) | 1.000 |
| Overall Length (Decimal Inch) | 4.5000 |
| Number of Threading Inserts | 3 |
| Thread Type | Internal/External |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Number of Flutes | 3 |
| Neck Diameter (Decimal Inch) | 0.8120 |
