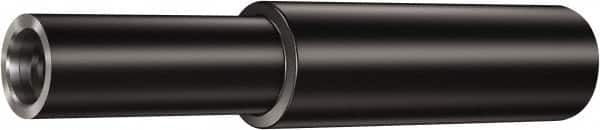

Sandvik Coromant - Coromant EH 11.99mm Straight Shank Milling Tip Insert Holder & Shank - 22mm Projection, 0.4567" Neck Diam, E12 Neck Thread, 11.6mm Nose Diam, 100mm OAL, Steel Exx-Axx-SS Tool Holder
Item #: 47185640
Brand: Sandvik Coromant
Model #: 5732622
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | Coromant EH |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 11.99 |
| Shank Diameter (Decimal Inch) | 0.4722 |
| Projection (mm) | 22.00 |
| Projection (Decimal Inch) | 0.8661 |
| Neck Diameter (Decimal Inch) | 0.4567 |
| Neck Thread Size | E12 |
| Nose Diameter (mm) | 11.60 |
| Nose Diameter (Decimal Inch) | 0.4567 |
| Toolholder Material | Steel |
| Overall Length (mm) | 100.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Head Length (Decimal Inch) | 0.8661 |
| Effective Length (mm) | 22.00 |
| Maximum Diameter (mm) | 11.60 |
| Maximum Diameter (Decimal Inch) | 0.4567 |
| Shank Material | Steel |
| Shank Shape | Round |
| Thread Size Connection to Tip | E12 |
| Toolholder Style | Exx-Axx-SS |
