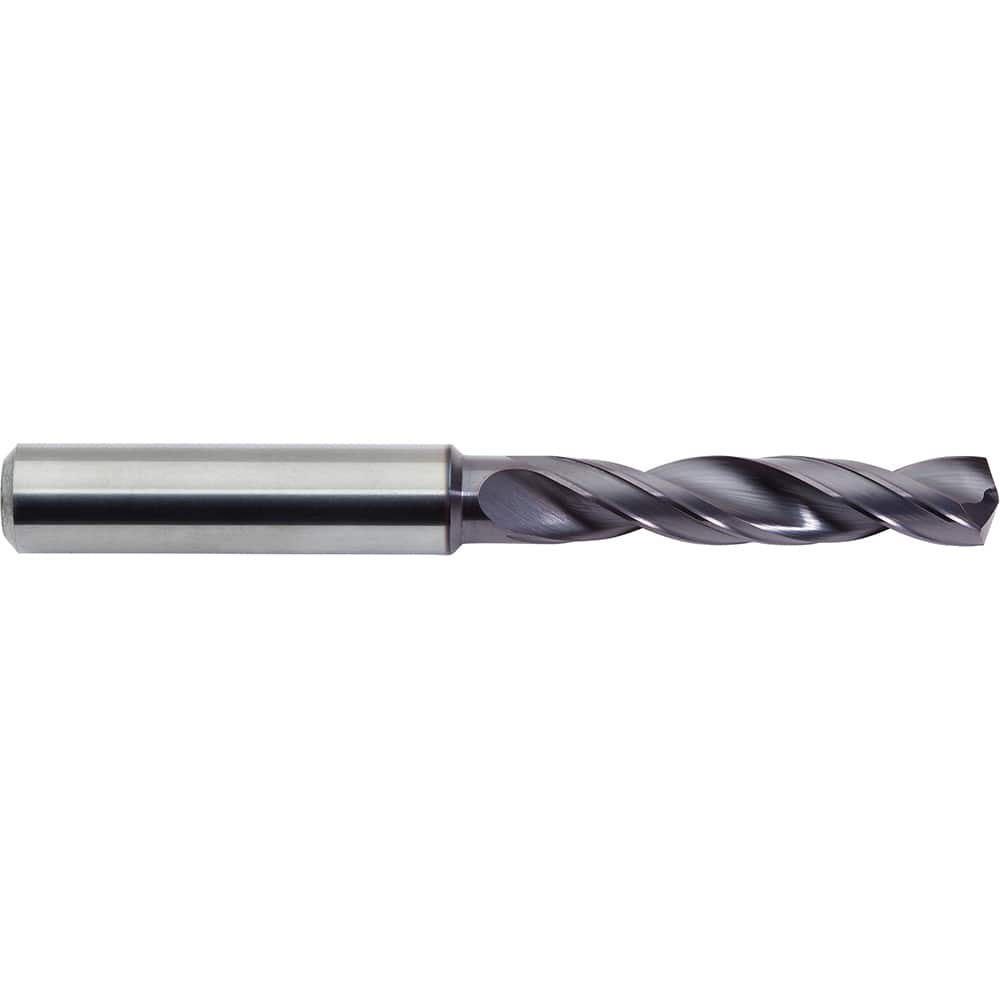

M.A. Ford - Screw Machine Length Drill Bits; Drill Bit Size (Decimal Inch): 0.5312 ; Drill Bit Size (Inch): 17/32 ; Drill Point Angle: 142 ; Drill Bit Material: Carbide ; Drill Bit Finish/Coating: ALtima? Plus ; Flute Type: Helical
Item #: 47232350
Brand: M.A. Ford
Model #: CXDSS5312AP
Product Specifications
Screw Machine Length Drill Bits; Drill Bit Size (Decimal Inch): 0.5312 ; Drill Bit Size (Inch): 17/32 ; Drill Point Angle: 142 ; Drill Bit Material: Carbide ; Drill Bit Finish/Coating: ALtima? Plus ; Flute Type: Helical
| Drill Bit Size (Decimal Inch) | 0.5312 |
| Drill Bit Size (Inch) | 17/32 |
| Drill Point Angle | 142 |
| Drill Bit Material | Carbide |
| Drill Bit Finish/Coating | ALtima? Plus |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | Yes |
| Flute Length (Inch) | 2.362 |
| Overall Length (Decimal Inch) | 4.21000 |
| Flute Length x Diameter Ratio | 3xD |
| Shank Diameter (Decimal Inch) | 0.5625 |
| Shank Diameter (Inch) | 9/16 |
| Specification Designation | DIN |
| Number of Flutes | 2 |
| Spiral Type | Right Hand |
| Specification Number | DIN 6537K |
| Number of Margins | 2.000 |
| Series/List | CXDSS |
| Length Type | Stub |
