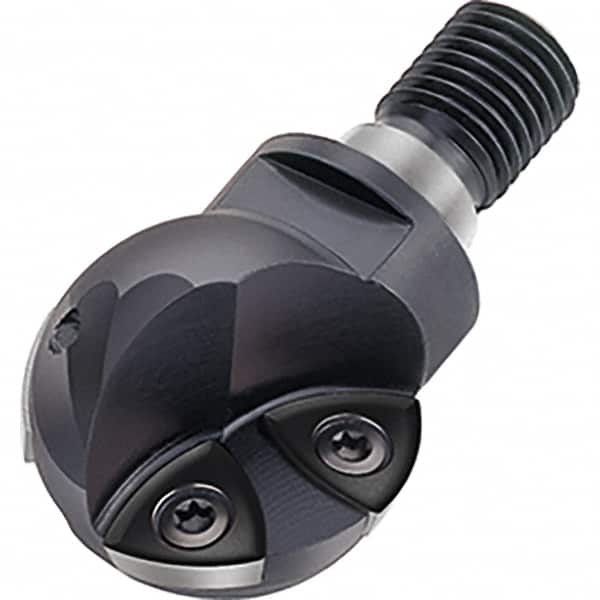

Walter - 25mm Cut Diam, 20mm Max Depth of Cut, 18.5mm Shank Diam, 51mm OAL, Indexable Ball Nose End Mill - 17,800 Max RPM
Item #: 47276902
Brand: Walter
Model #: 5020743
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25 |
| Cutting Diameter (Decimal Inch) | 0.984 |
| Maximum Depth of Cut (mm) | 20.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.7870 |
| Shank Diameter (mm) | 18.50 |
| Shank Diameter (Decimal Inch) | 0.728 |
| Series | F2239B-T |
| Overall Length (mm) | 51.00 |
| Overall Length (Decimal Inch) | 2.0080 |
| Toolholder Material | Steel |
| Maximum RPM | 17800 |
