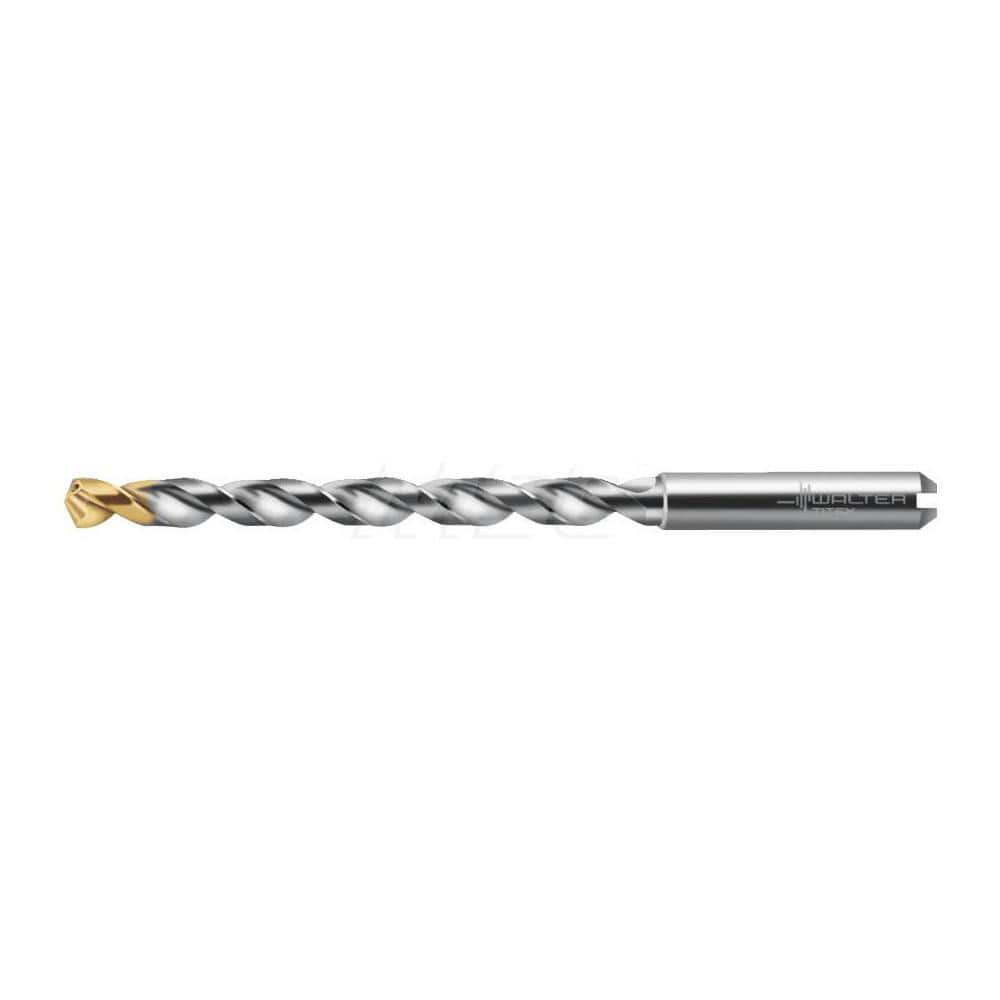

Jobber Length Drill Bit: 0.3346″ Dia, 130 °, Solid Carbide TiN Finish, 5.236″ OAL, Right Hand Cut, Straight-Cylindrical Shank, Series A3486TIP
Item #: 47287115
Brand: Walter-Titex
Model #: 5064189
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.3346 |
| Drill Bit Size (mm) | 8.50 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | TiN |
| Drill Point Angle (Degrees) | 130 |
| Point Type | Alpha 44 |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3940 |
| Overall Length (mm) | 133.00 |
| Overall Length (Decimal Inch) | 5.2360 |
| Flute Length (mm) | 91.00 |
| Flute Length (Decimal Inch) | 3.5830 |
| Series | A3486TIP |
| Tool Application | Blind Hole; Stack Drilling |
| Flute Length x Diamter Ratio | 8xD |
| Flute By Diameter Ratio | 8xD |
| Shank Diameter (mm) | 10.00 |
| Maximum Drilling Depth (Decimal Inch) | 2.9920 |
| Maximum Drilling Depth (mm) | 76.00 |
| Shank Length (mm) | 40.00 |
| Shank Length (Decimal Inch) | 1.5750 |
| Drill Point Length (mm) | 1.98 |
| Drill Point Length (Decimal Inch) | 0.0780 |
| Drill Bit Diameter Tolerance | m7 |
| Tool Performance | High Performance |
| Standards | ISO; ANSI |
| Drill Bit Grade | TIP |
| Drill Bit Size Range (Decimal Inch) | 0.3000 - 0.3500 |
| Drill Bit Size Range (mm) | 8.00 - 9.00 |
