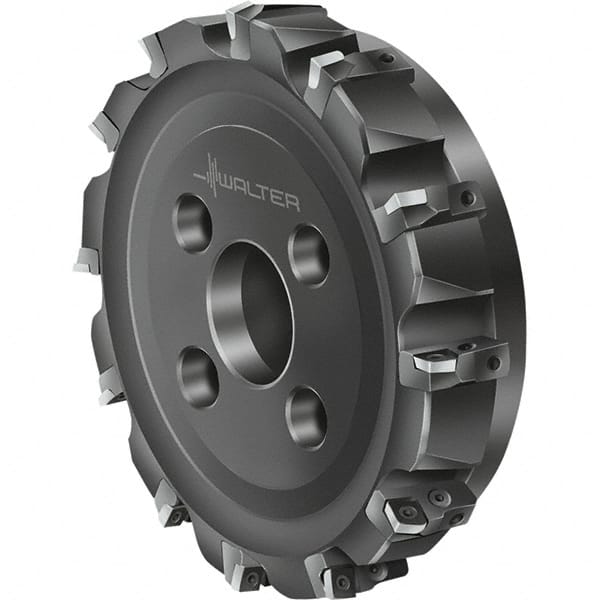

Walter - 14 Inserts, 315mm Cut Diam, 60mm Arbor Diam, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 80mm High, Series F2010-B4-SP1204-89
Item #: 47292867
Brand: Walter
Model #: 5000304
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 315.00 |
| Cutting Diameter (Decimal Inch) | 12.4020 |
| Arbor Hole Diameter (mm) | 60.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.3620 |
| Lead Angle | 0 |
| Overall Height (mm) | 80.00 |
| Overall Height (Decimal Inch) | 3.1500 |
| Series | F2010-B4-SP1204-89 |
| Through Coolant | No |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 14 |
| Number of Flutes | 14 |
| Maximum RPM | 3350 |
| Cutting Edge Length (Decimal Inch) | 0.4330 |
| Toolholder Material | Steel |
