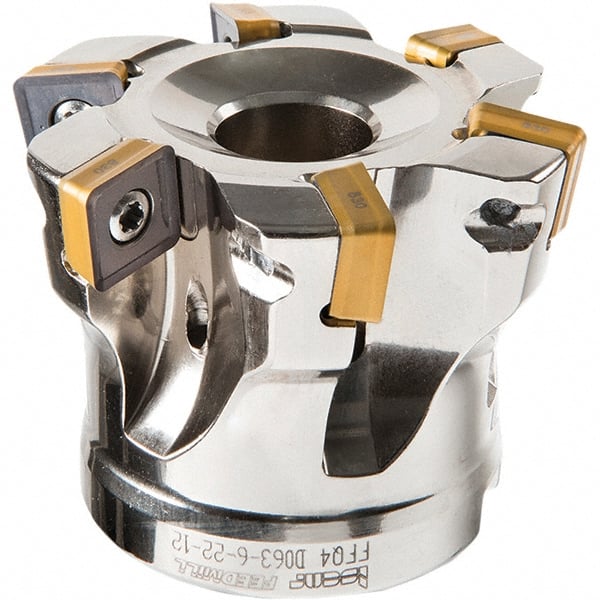

Iscar - Indexable High-Feed Face Mills Cutting Diameter (Decimal Inch): 1.636 Cutting Diameter (mm): 41.6
Item #: 38029625
Brand: Iscar
Model #: 3107342
Product Specifications
Indexable High-Feed Face Mills; Cutting Diameter (Decimal Inch): 1.636 ; Cutting Diameter (mm): 41.6 ; Maximum Depth of Cut (Decimal Inch): 0.059 ; Maximum Depth of Cut (mm): 1.5 ; Arbor Hole Diameter (Decimal Inch): 1 ; Arbor Hole Diameter (mm): 25.4
| Cutting Diameter (Decimal Inch) | 1.636 |
| Cutting Diameter (mm) | 41.6 |
| Maximum Depth of Cut (Decimal Inch) | 0.059 |
| Maximum Depth of Cut (mm) | 1.5 |
| Arbor Hole Diameter (Decimal Inch) | 1 |
| Arbor Hole Diameter (mm) | 25.4 |
| Overall Height (Decimal Inch) | 2 |
| Overall Height (mm) | 50.8 |
| Series | FFQ4 |
| Cutter Style | FFQ4 |
| Number of Cutter Inserts | 6 |
| Insert Compatibility | FFQ4 |
| Insert Holding Method | Screw |
| Number of Flutes | 6 |
| Maximum Body Diameter (Decimal Inch) | 2.252 |
| Maximum Body Diameter (mm) | 57.2 |
| Through Coolant | Yes |
