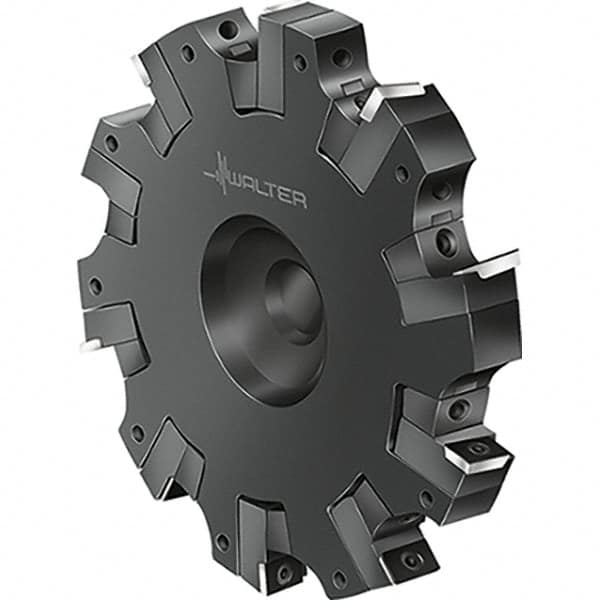

Walter - 0.866" Cutting Width, 200mm Cutter Diam, Indexable Slotting Cutter
Item #: 47294269
Brand: Walter
Model #: 5000735
Exact Tooling IR#: 04
Product Specifications
0.866" Cutting Width, 200mm Cutter Diam, Indexable Slotting Cutter -
| Cutting Width (mm) | 22.00 |
| Cutting Width (Decimal Inch) | 0.8660 |
| Cutter Diameter (mm) | 200.00 |
| Cutter Diameter (Decimal Inch) | 7.8740 |
| Maximum RPM | 9999 |
| Minimum Cutting Width (Decimal Inch) | 0.8660 |
| Maximum Cutting Width (Decimal Inch) | 0.9250 |
| Maximum Cutting Width (mm) | 23.50 |
| Hub Diameter (mm) | 90.00 |
| Hub Diameter (Decimal Inch) | 3.5430 |
| Manufacturers Catalog Number | F2252.BN.200.Z06.22.S686 |
| Arbor Hole Diameter (Decimal Inch) | 1.5750 |
