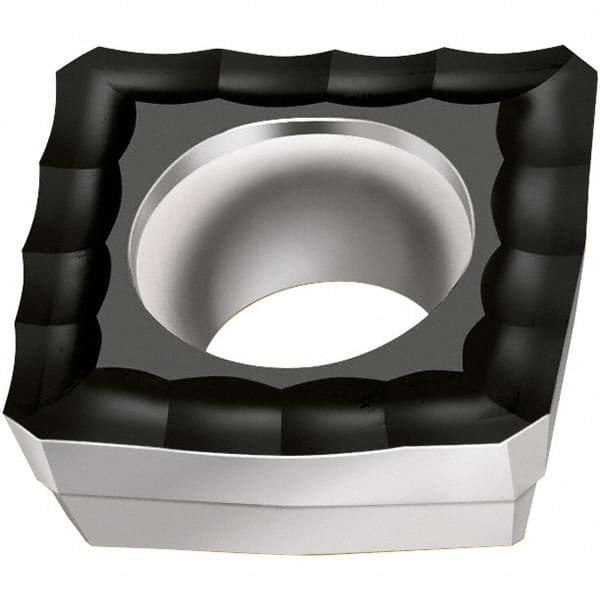

Walter - Milling Tip Insert Holder & Shank - TiCN Finish, 11mm Inscribed Circle
Item #: 47302542
Brand: Walter
Model #: 6864019
Exact Tooling IR#: 04
Features and Benefits
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is commonly used on stainless steel, cast iron and aluminum alloys.
| Product Specifications | |
|---|---|
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 0.00 |
| Corner Radius (Decimal Inch) | 0.000 |
| Coating Process | PVD |
| Coating | TiCN |
| Chipbreaker | E67 |
| Inscribed Circle (mm) | 11.00 |
| Inscribed Circle (Decimal Inch) | 0.4330 |
| Manufacturer's Grade | WXP40 |
| Length (mm) | 11 |
| Relief Angle | 11 |
| Length (Decimal Inch) | 0.4330 |
| Thickness (mm) | 3.97 |
| Thickness (Decimal Inch) | 0.1560 |
