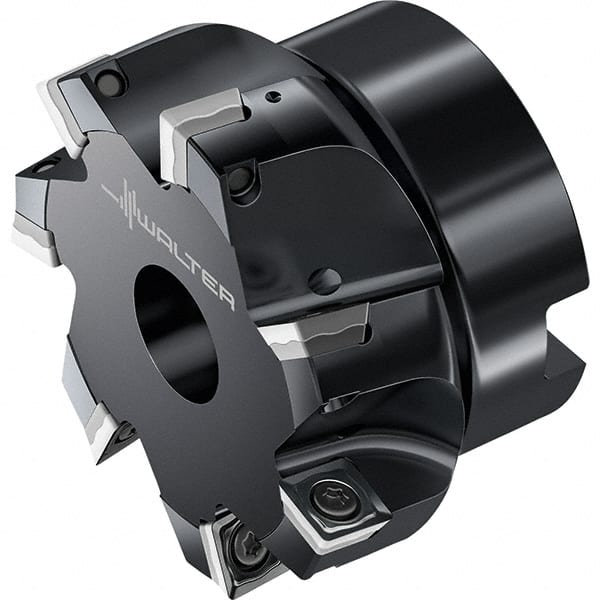

Walter - 9 Inserts, 100mm Cut Diam, 32mm Arbor Diam, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 50mm High, Through Coolant, Series M4132-B1
Item #: 47305602
Brand: Walter
Model #: 6741204
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Cutting Diameter (Decimal Inch) | 3.9370 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2600 |
| Lead Angle | 0 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9690 |
| Series | M4132-B1 |
| Through Coolant | Yes |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 9 |
| Number of Flutes | 9 |
| Maximum RPM | 12600 |
| Cutting Edge Length (Decimal Inch) | 0.4570 |
| Toolholder Material | Steel |
