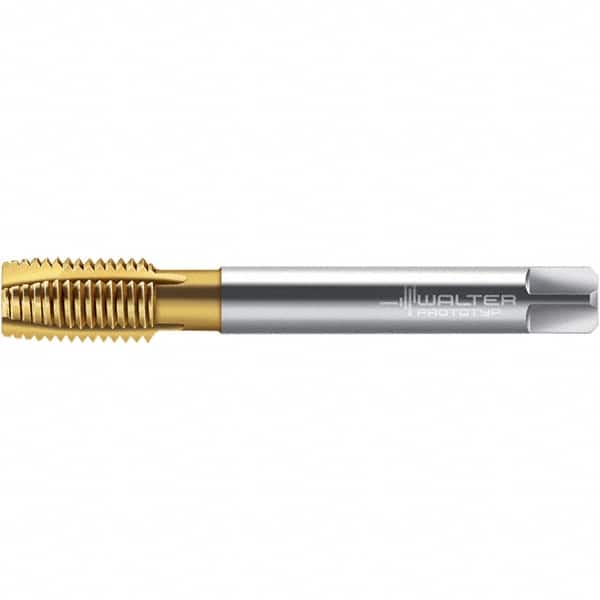

Walter-Prototyp - M8x1.00, 3 Flute, TiN Finish, High Speed Steel Spiral Point Tap - Right Hand Thread, 90mm OAL, 18mm Thread Length, 6mm Shank Diam, 6H Class of Fit, Series TC216-MF-L0
Item #: 47320254
Brand: Walter-Prototyp
Model #: 6958856
Exact Tooling IR#: 04
Features and Benefits
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M8x1.00 |
| Number of Flutes | 3 |
| Class of Fit | 6H |
| Finish/Coating | TiN |
| Material | High Speed Steel |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 3.6810 |
| Overall Length (mm) | 90.00 |
| Thread Length (Decimal Inch) | 0.7090 |
| Thread Length (mm) | 18.00 |
| Series/List | TC216-MF-L0 |
| Tapping Depth (mm) | 67.00 |
| Shank Diameter (Decimal Inch) | 0.2360 |
| Shank Diameter (mm) | 6.00 |
| Square Length (Inch) | 0.3150 |
| Square Size (Decimal Inch) | 0.1930 |
| Square Size (mm) | 4.90 |
| Material Application2 | K, M, N, P |
