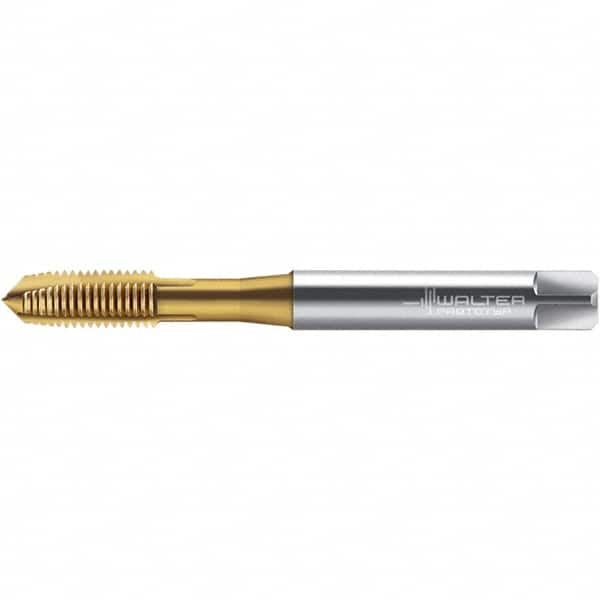

Walter-Prototyp - M9x1.25, 3 Flute, TiN Finish, High Speed Steel Spiral Point Tap - Right Hand Thread, 93.38mm OAL, 18mm Thread Length, 8mm Shank Diam, Series TC216-M-C0
Item #: 47320395
Brand: Walter-Prototyp
Model #: 6743448
Exact Tooling IR#: 04
Features and Benefits
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M9x1.25 |
| Number of Flutes | 3 |
| Finish/Coating | TiN |
| Material | High Speed Steel |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 3.6760 |
| Overall Length (mm) | 93.38 |
| Thread Length (Decimal Inch) | 0.7090 |
| Thread Length (mm) | 18.00 |
| Series/List | TC216-M-C0 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Shank Diameter (mm) | 8.00 |
| Square Length (Inch) | 0.3540 |
| Square Size (Decimal Inch) | 0.2440 |
| Square Size (mm) | 6.20 |
| Material Application2 | K, M, N, P |
