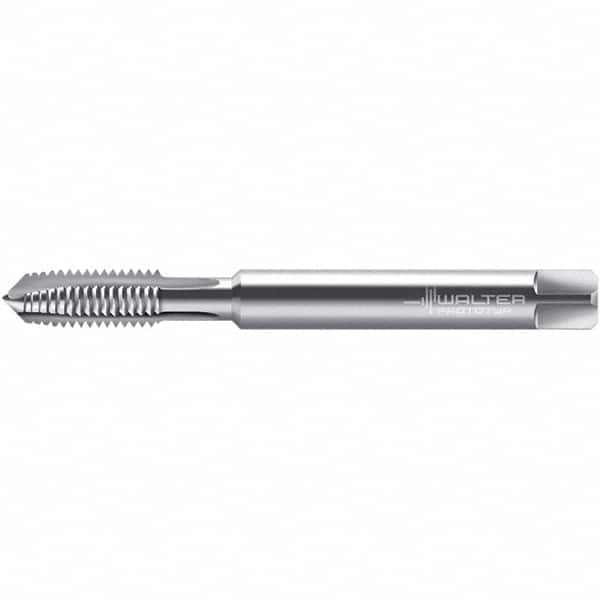

Walter-Prototyp - #3-48, 2 Flute, Uncoated, High Speed Steel Spiral Point Tap - Right Hand Thread, 45.86mm OAL, 9mm Thread Length, 2.8mm Shank Diam, Series 22207
Item #: 47320569
Brand: Walter-Prototyp
Model #: 5077992
Exact Tooling IR#: 04
Features and Benefits
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | #3-48 |
| Number of Flutes | 2 |
| Finish/Coating | Uncoated |
| Material | High Speed Steel |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 1.8060 |
| Overall Length (mm) | 45.86 |
| Thread Length (Decimal Inch) | 0.3540 |
| Thread Length (mm) | 9.00 |
| Series/List | 22207 |
| Shank Diameter (Decimal Inch) | 0.1100 |
| Shank Diameter (mm) | 2.80 |
| Square Length (Inch) | 0.1970 |
| Square Size (Decimal Inch) | 0.0830 |
| Square Size (mm) | 2.10 |
| Material Application2 | M, P, S |
