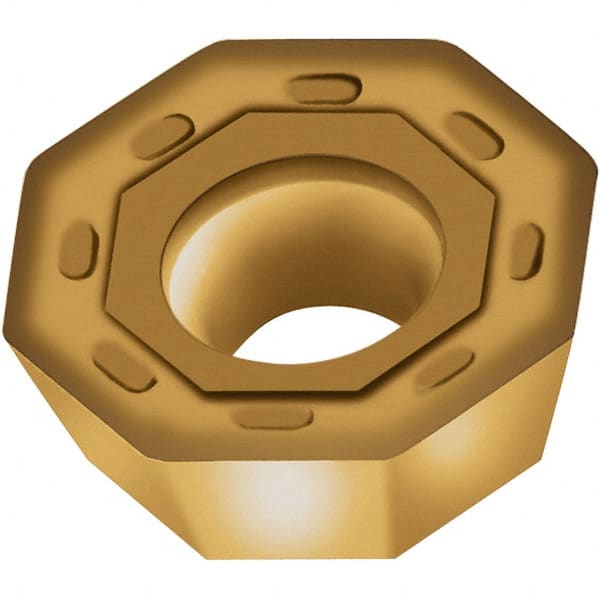

Walter - D57 Grade WSM35S Milling Insert - 5.56mm Thick, 15.88mm Inscribed Circle, 1.2mm Corner Radius
Item #: 47326756
Brand: Walter
Model #: 7058538
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Manufacturer's Grade | WSM35S |
| Length (mm) | 6.58 |
| Length (Decimal Inch) | 0.2590 |
| Inscribed Circle (mm) | 15.88 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness (mm) | 5.56 |
| Thickness (Decimal Inch) | 0.2190 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Corner Radius (mm) | 1.20 |
| Hole Diameter (mm) | 5.50 |
| Hole Diameter (Decimal Inch) | 0.2170 |
| Relief Angle | 15.000 |
| Coating Process | PVD |
| Insert Hand | Neutral |
| Chipbreaker | D57 |
| Maximum Depth of Cut (mm) | 6.58 |
| Maximum Depth of Cut (Decimal Inch) | 0.2590 |
| Manufacturers Catalog Number | ODMT060512-D57 WSM35S |
