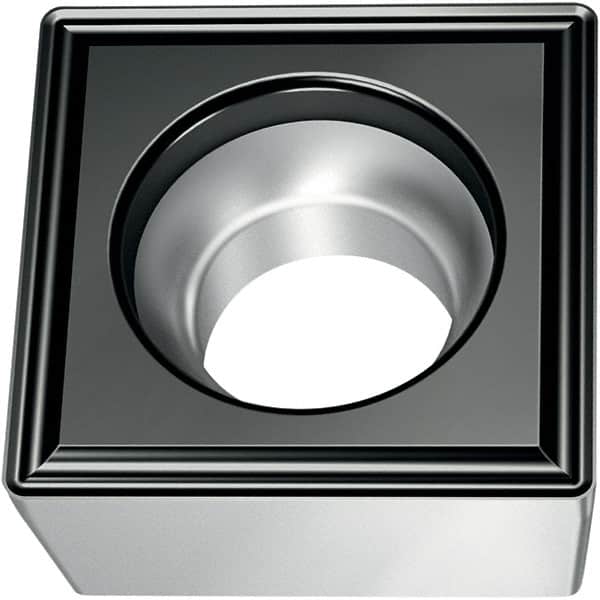

Walter - Indexable Turning Toolholder - SCMT FK6 Insert Compatibility
Item #: 47335906
Brand: Walter
Model #: 6733994
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| ISO Number | SCMT120408-FK6 WKK10S |
| Shape | Square |
| Thickness (Decimal Inch) | 0.1880 |
| Series | SCMT-FK6 |
| Maximum Depth of Cut (mm) | 12.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.5000 |
| Manufacturer's Grade | WKK10S |
| Length (mm) | 12.70 |
| Length (Decimal Inch) | 0.5000 |
| Insert Style | SCMT |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Hole Diameter (mm) | 5.50 |
| Hole Diameter (Decimal Inch) | 0.2170 |
| Cutting Direction | Neutral |
| Coating Process | CVD |
| Corner Radius (mm) | 0.8 |
| Coating | TiCN+Al2O3+(TiCN) |
| Corner Radius (Decimal Inch) | 0.0310 |
| Chip Breaker | FK6 |
| Proprietary Coating Designation | WKK10S |
| Included Angle | 90 |
| Relief Angle | 7 |
| Thickness (mm) | 4.76 |
| Insert Hand | Neutral |
| Insert Length (Decimal Inch) | 0.5000 |
| Cutting Width (mm) | 12.70 |
| OverallLength (mm) | 12.70 |
| Overall Length (Decimal Inch) | 0.5000 |
| Insert Length (mm) | 12.7000 |
