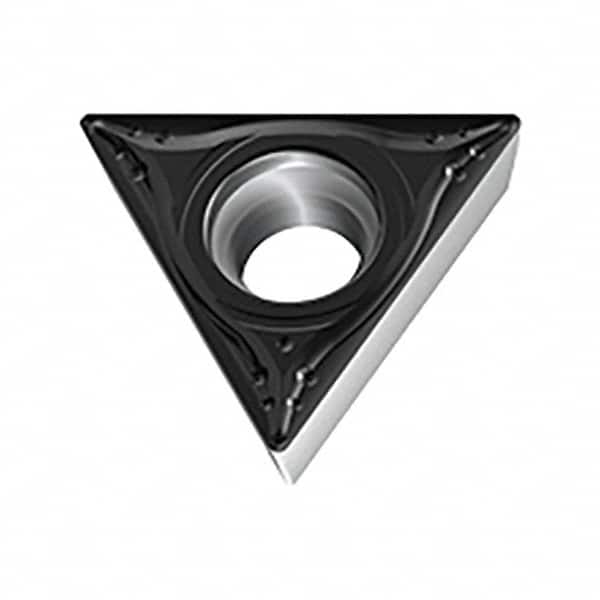

Walter - TCGT MM4 Grade WSM20S Turning Insert - TiAlN+Al2O3+(Al) Finish, 60° Triangle, 5.56mm Inscr Circle, 2.38mm Thick, 0.4mm Corner Radius
Item #: 47336755
Brand: Walter
Model #: 6844627
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Insert Style | TCGT |
| Length (mm) | 9.37 |
| Length (Decimal Inch) | 0.3690 |
| Inscribed Circle (mm) | 5.56 |
| Inscribed Circle (Decimal Inch) | 0.2190 |
| Thickness (Decimal Inch) | 0.0940 |
| Thickness (mm) | 2.38 |
| Corner Radius (mm) | 0.4 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Manufacturer's Grade | WSM20S |
| Coating | TiAlN+Al2O3+(Al) |
| Chip Breaker | MM4 |
| Insert Length (Decimal Inch) | 0.3690 |
| OverallLength (mm) | 9.37 |
| Overall Length (Decimal Inch) | 0.3690 |
| Insert Length (mm) | 9.3700 |
| Hole Diameter (mm) | 2.50 |
| Hole Diameter (Decimal Inch) | 0.0980 |
| ISO Number | TCGT090204-MM4 WSM20S |
| Relief Angle | 7 |
| Proprietary Coating Designation | WSM20S |
| Coating Process | PVD |
| Manufacturers Catalog Number | 6844627 |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | TCGT-MM4 |
| Maximum Depth of Cut (mm) | 9.37 |
| Maximum Depth of Cut (Decimal Inch) | 0.3690 |
| Cutting Width (mm) | 9.37 |
| Shape | Triangular |
