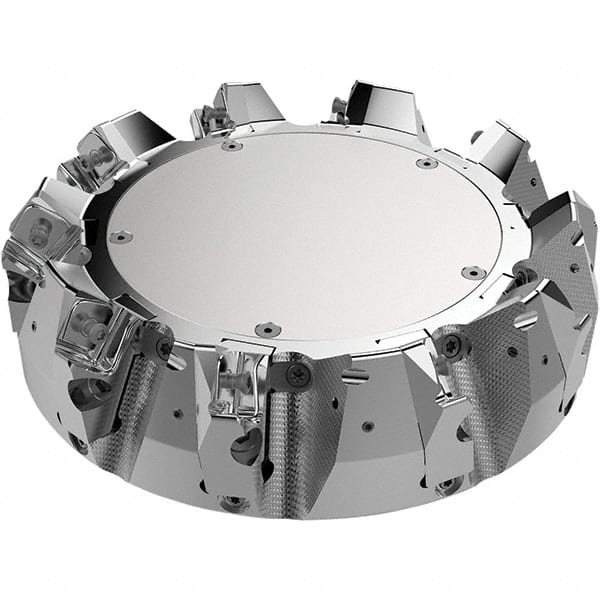

Seco - 200mm Cut Diam, 60mm Arbor Hole, 9mm Max Depth of Cut, 48° Indexable Chamfer & Angle Face Mill - 9 Inserts, 80 Insert, Right Hand Cut, 9 Flutes, Through Coolant, Series R220.54
Item #: 47378898
Brand: Seco
Model #: 03167768
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 200 |
| Arbor Hole Diameter (mm) | 60.00 |
| Lead Angle | 48 |
| Insert Compatibility | 80 |
| Series | R220.54 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 9.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.354 |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Screw |
| Cutter Style | R220.54 |
| Number of Flutes | 9 |
| Cutting Rake Angle | -7 |
| Rake | Negative |
| Hub Diameter (mm) | 130.00 |
| Keyway Width (mm) | 25.70 |
| Maximum RPM | 2700 |
| Cutting Direction | Right Hand |
| Pitch | Normal |
| Toolholder Material | Steel |
