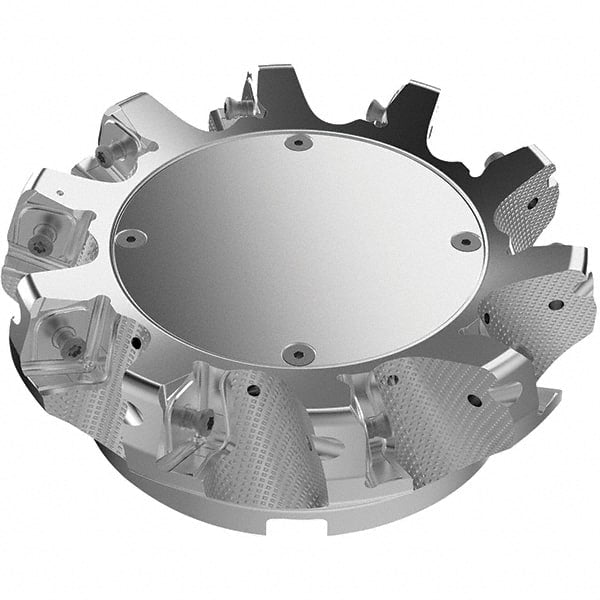

Seco - 160mm Cut Diam, 40mm Arbor Hole, 11mm Max Depth of Cut, 71° Indexable Chamfer & Angle Face Mill - 10 Inserts, 63 Insert, Right Hand Cut, 10 Flutes, Through Coolant, Series R220.56
Item #: 47379185
Brand: Seco
Model #: 03157450
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 160 |
| Arbor Hole Diameter (mm) | 40.00 |
| Lead Angle | 71 |
| Insert Compatibility | 63 |
| Series | R220.56 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 11.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.433 |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Screw |
| Cutter Style | R220.56 |
| Number of Flutes | 10 |
| Cutting Rake Angle | -7 |
| Rake | Negative |
| Hub Diameter (Decimal Inch) | 3.5430 |
| Keyway Width (Decimal Inch) | 0.6457 |
| Maximum RPM | 3300 |
| Cutting Direction | Right Hand |
| Pitch | Close |
| Toolholder Material | Steel |
