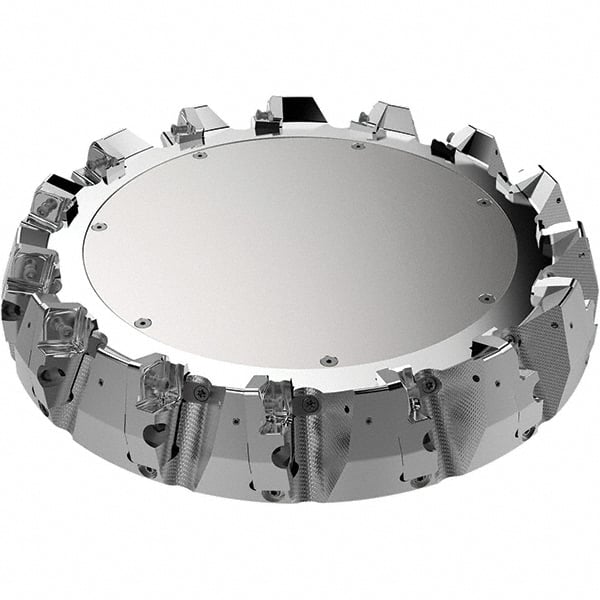

Seco - 2.36" Arbor Hole, 11mm Max Depth of Cut, 71° Indexable Chamfer & Angle Face Mill - 14 Inserts, Right Hand Cut, 14 Flutes, Through Coolant, Series R220.56
Item #: 47379201
Brand: Seco
Model #: 03167779
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Arbor Hole Diameter (Decimal Inch) | 2.3600 |
| Lead Angle | 71 |
| Overall Height (Decimal Inch) | 3.1496 |
| Series | R220.56 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 11.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.433 |
| Number of Cutter Inserts | 14 |
| Insert Holding Method | Screw |
| Cutter Style | R220.56 |
| Number of Flutes | 14 |
| Cutting Rake Angle | -7 |
| Rake | Negative |
| Hub Diameter (Decimal Inch) | 5.1180 |
| Keyway Width (Decimal Inch) | 1.0118 |
| Maximum RPM | 2200 |
| Cutting Direction | Right Hand |
| Pitch | Normal |
| Toolholder Material | Steel |
