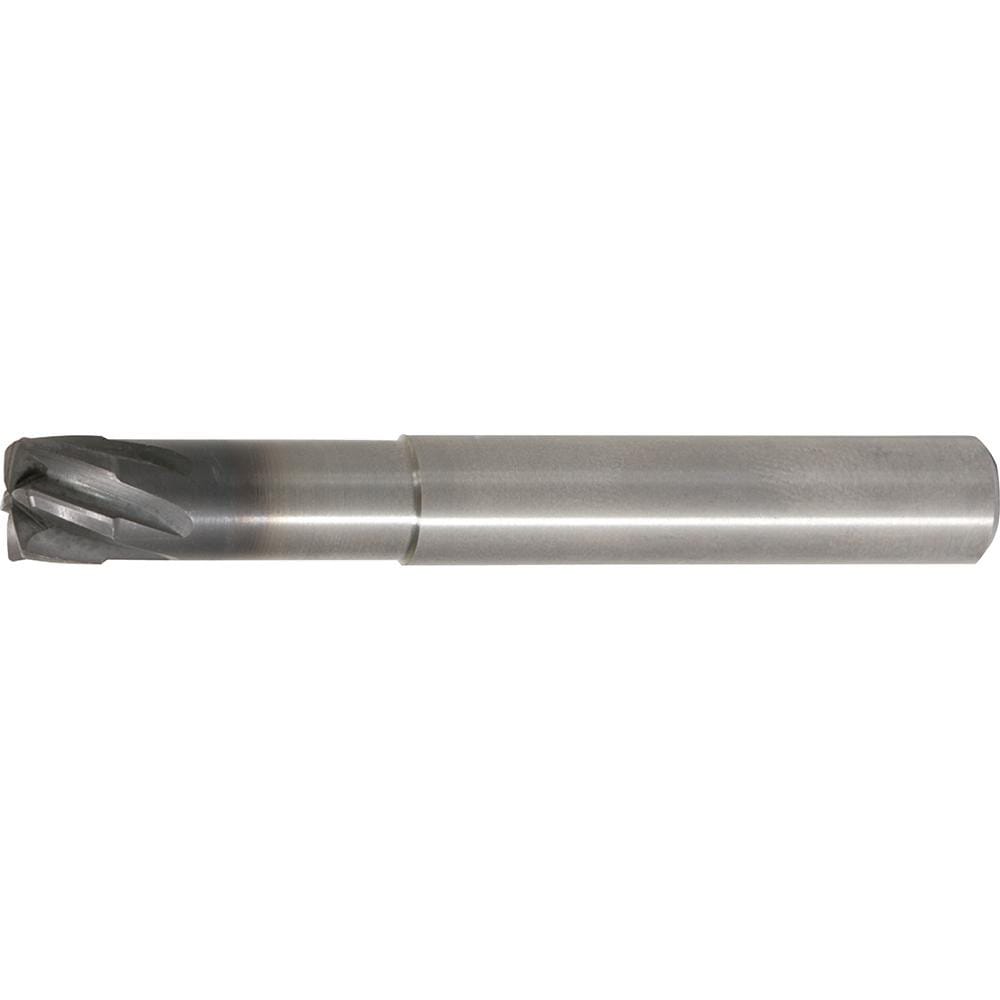

Brand: Widia / Part #: 3484770
Item #: 98825680
Brand: Widia
Model #: 3484770
Product Specifications
| Mill Diameter (Decimal Inch) | 0.5000 |
| Mill Diameter (Inch) | 1/2 |
| Number of Flutes | 6 |
| Material | Carbide |
| Finish/Coating | AlTiN |
| Length of Cut (Decimal Inch) | 0.0164 |
| Length of Cut (Inch) | 0.0164 |
| Shank Diameter (Inch) | 1/2 |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
| Helix Angle | 20.00 |
| Reach Length (Decimal Inch) | 1.5000 |
| Reach Length (Inch) | 1-1/2 |
| Neck Diameter (Decimal Inch) | 0.4610 |
| Material Grade | AlTiN-MT1 |
| Single or Double End | Single |
| Length Type | Regular |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Series | 7FN7 |
| Chipbreaker | No |
