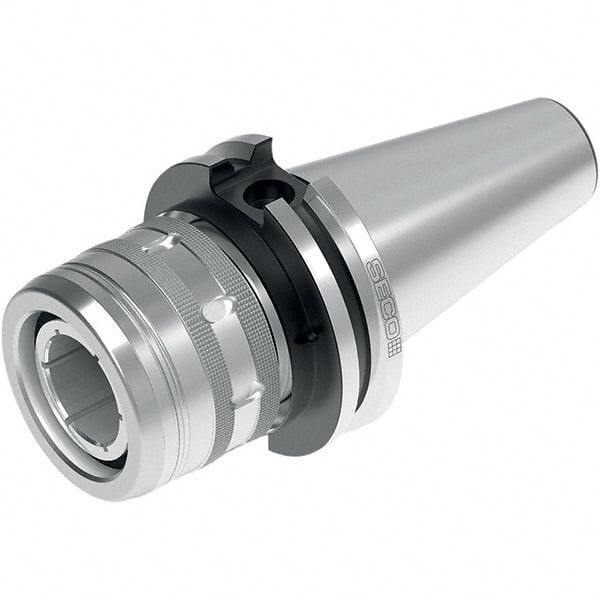

Seco - CAT40 Taper Shank, 3/4" Hole Diam x 1.93" Nose Diam Milling Chuck - 2.48" Projection, 0.0002" TIR,
Item #: 47384441
Brand: Seco
Model #: 03211215
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Taper Size | CAT40 |
| Shank Type | Taper Shank |
| Hole Diameter (Inch) | 3/4 |
| Hole Diameter (Decimal Inch) | 0.7500 |
| Nose Diameter (Decimal Inch) | 1.9300 |
| Projection (mm) | 62.99 |
| Projection (Decimal Inch) | 2.4800 |
| Through Coolant | Yes |
| TIR (mm) | 53.000 |
| Clamping Depth (Decimal Inch) | 1.8700 |
| Clamping Depth (Decimal Inch) | 1.87 |
| Overall Length (Decimal Inch) | 5.6900 |
| TIR (Decimal Inch) | 0.0002 |
