Brand: Widia / Part #: 2968765
Item #: 99725616
Brand: Widia
Model #: 2968765
Product Specifications

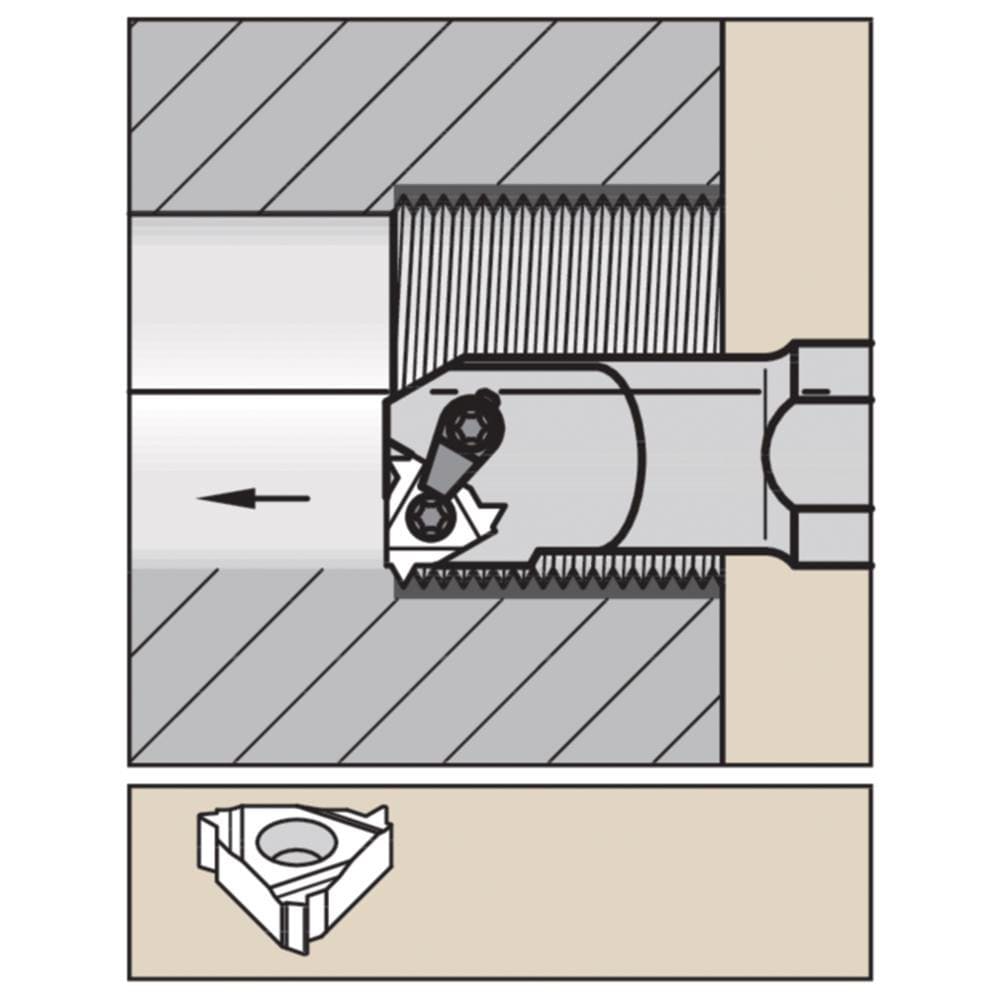

| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Compatible Insert Size Code | 3 |
| Shank Width/Diameter (Inch) | 1-1/4 |
| Toolholder Style | LSER |
| Insert Compatibility | LT16NR |
| Coolant Entry Style Code | 0-Without Coolant |
| Insert Holding Method | Clamp |
| Shank Height (Decimal Inch) | 0.0000 |
| Shank Length (Inch) | 7-1/2 |
| Shank Length (Decimal Inch) | 7.5000 |
| Overall Length (Inch) | 10 |
| Overall Length (Decimal Inch) | 10.0000 |
| Minimum Bore Diameter (Decimal Inch) | 1.2000 |
| Series | S-LSE |
| Multi-use Tool | No |
| Cutting Tool Application | Threading |
| Head Length (Decimal Inch) | 2.5000 |
| Maximum Depth of Cut (Decimal Inch) | 0.0500 |
| Adjustable Overhang | Yes |
| Maximum Overhang (Inch) | 2.5000 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2750 |
| Center to Cutting Edge (Decimal Inch) | 0.6500 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (mm) | 9.53 |
| Primary Workpiece Material Code | P; S; H; K; M; N; O |
| Toolholder Material | Steel |
| Insert Thickness (Decimal Inch) | 0.1350 |
| Style | LSER |
| Coolant Through | No |
