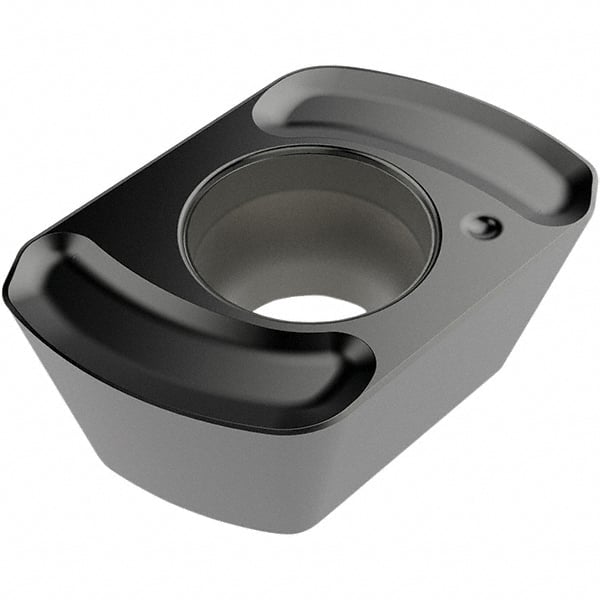

Seco - LPKT09T420 M13 Grade T350M Carbide Milling Insert - TiCN/Al2O3 Finish, 4.76mm Thick, 2mm Corner Radius
Item #: 47485321
Brand: Seco
Model #: 03212689
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LPKT |
| Insert Size | 09T420 |
| Material | Carbide |
| Material Grade | C5 |
| Manufacturer's Grade | T350M |
| Coating | TiCN/Al2O3 |
| Width (mm) | 9.50 |
| Width (Decimal Inch) | 0.3700 |
| Length (mm) | 9.30 |
| Length (Decimal Inch) | 0.3661 |
| Thickness (mm) | 4.76 |
| Thickness (Decimal Inch) | 0.1900 |
| Corner Radius (Decimal Inch) | 0.0800 |
| Corner Radius (mm) | 2.00 |
| Rake Angle | 10 |
| Rake | Neutral |
| Coating Process | CVD |
| Included Angle | 90 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | M13 |
