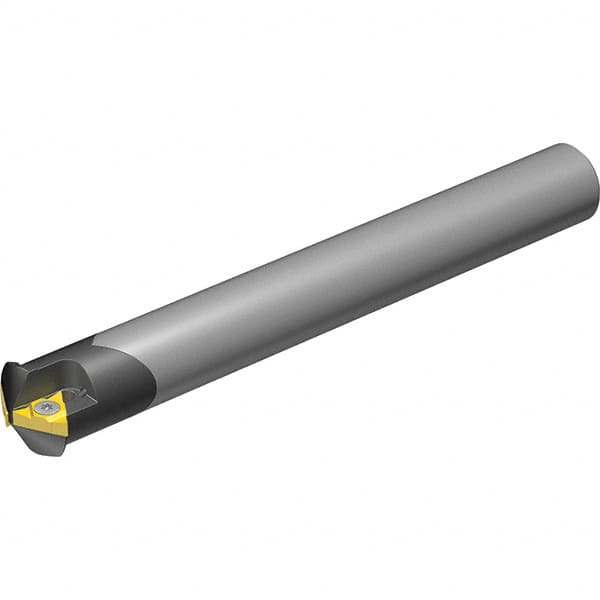

Vargus - 1.02" Cut Diam, 4.33" Max Depth of Cut, 3/4" Shank Diam, Internal/External Indexable Thread Mill - Insert Style 2UI, 1/4" Insert Size, 3 Inserts, Toolholder Style CTM SC, 6.496" OAL
Item #: 47497573
Brand: Vargus
Model #: 67129
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.02 |
| Maximum Hole Depth (Decimal Inch) | 4.3300 |
| Insert Style | 2UI |
| Insert Size (Decimal Inch) | 0.2500 |
| Toolholder Style | CTM SC |
| Shank Diameter (Decimal Inch) | 0.75 |
| Overall Length (Decimal Inch) | 6.4960 |
| Number of Threading Inserts | 3 |
| Thread Type | Internal/External |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Toolholder Material | Carbide |
| Insert Holding Method | Screw |
| Number of Flutes | 3 |
| Neck Diameter (Decimal Inch) | 0.75 |
