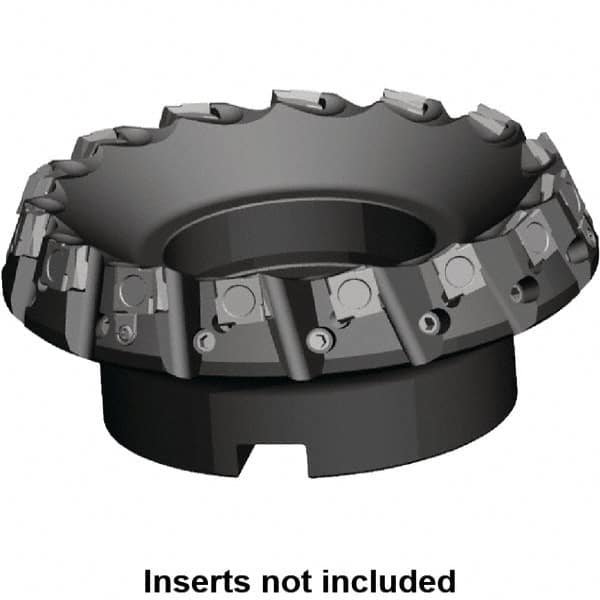

6″ Cut Diam, 0.232″ Max Depth, 2″ Arbor Hole, 2-3/8″ High, Indexable Copy Face Mill Takes 18 Inserts, SPHX1205\x85 Insert Style, WUFP Toolholder Style, Series Fix-Perfect
Item #: 47498993
Brand: Kennametal
Model #: 1724395
Product Specifications
| Cutting Diameter (Inch) | 6 |
| Cutting Diameter (Decimal Inch) | 6.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.2320 |
| Arbor Hole Diameter (Inch) | 2 |
| Overall Height (Inch) | 2-3/8 |
| Series | Fix-Perfect |
| Number of Cutter Inserts | 18 |
| Insert Compatibility | SPHX1205? |
| Cutter Style | WUFP |
| Maximum Rpm | 2865 |
| Through Coolant | No; None |
| Insert Holding Method | Clamp |
| Hub Diameter (mm) | 124.00 |
| Keyway Width (Decimal Inch) | 0.7690 |
| Cutting Direction | Right Hand |
