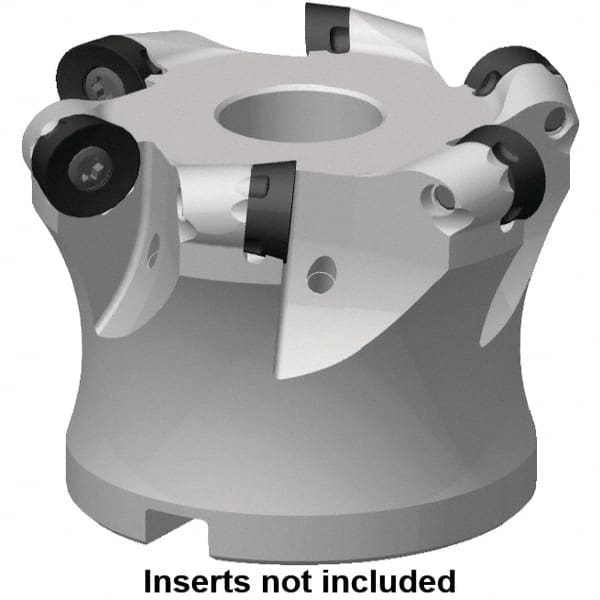

Kennametal - 40mm Cut Diam, 6mm Max Depth, 22mm Arbor Hole, 5 Inserts, RP..1204 Insert Style, Indexable Copy Face Mill - 7713VR12 Cutter Style, 28,500 Max RPM, 40mm High, Through Coolant, Series 7713
Item #: 47499108
Brand: Kennametal
Model #: 5673769
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5750 |
| Maximum Depth of Cut (mm) | 6.00 |
| Arbor Hole Diameter (mm) | 22.00 |
| Overall Height (mm) | 40.00 |
| Series | 7713 |
| Number of Cutter Inserts | 5 |
| Insert Compatibility | RP..1204 |
| Cutter Style | 7713VR12 |
| Through Coolant | Yes |
| Maximum RPM | 28500 |
| Insert Holding Method | Screw |
| Hub Diameter (mm) | 45.00 |
| Cutting Direction | Right Hand |
