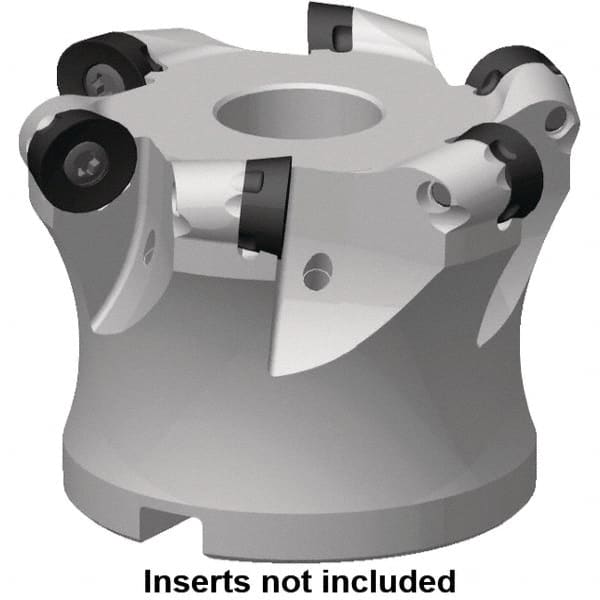

Kennametal - 30mm Cut Diam, 5mm Max Depth, 16mm Arbor Hole, 5 Inserts, RP.. 10T3 Insert Style, Indexable Copy Face Mill - 7713VR10 Cutter Style, 45,500 Max RPM, 40mm High, Through Coolant, Series 7713
Item #: 47499181
Brand: Kennametal
Model #: 5672813
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 30.00 |
| Cutting Diameter (Decimal Inch) | 1.1810 |
| Maximum Depth of Cut (mm) | 5.00 |
| Arbor Hole Diameter (mm) | 16.00 |
| Overall Height (mm) | 40.00 |
| Series | 7713 |
| Number of Cutter Inserts | 5 |
| Insert Compatibility | RP.. 10T3 |
| Cutter Style | 7713VR10 |
| Through Coolant | Yes |
| Maximum RPM | 45500 |
| Insert Holding Method | Screw |
| Hub Diameter (mm) | 36.20 |
| Cutting Direction | Right Hand |
