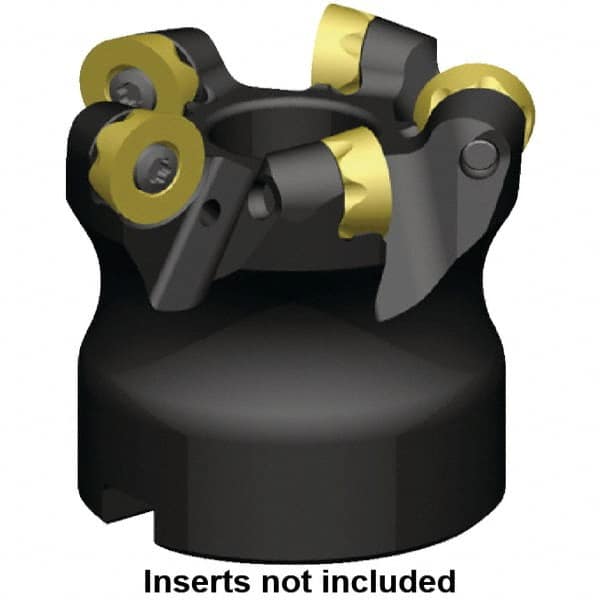

Kennametal - 47mm Cut Diam, 8mm Max Depth, 22mm Arbor Hole, 6 Inserts, RP..T1605M0.. Insert Style, Indexable Copy Face Mill - KSRM Cutter Style, 21,700 Max RPM, 50mm High, Through Coolant, Series KSRM
Item #: 47499207
Brand: Kennametal
Model #: 4042695
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 47.00 |
| Cutting Diameter (Decimal Inch) | 1.8500 |
| Maximum Depth of Cut (mm) | 8.00 |
| Arbor Hole Diameter (mm) | 22.00 |
| Overall Height (mm) | 50.00 |
| Series | KSRM |
| Number of Cutter Inserts | 6 |
| Insert Compatibility | RP..T1605M0.. |
| Cutter Style | KSRM |
| Through Coolant | Yes |
| Maximum RPM | 21700 |
| Insert Holding Method | Screw |
| Hub Diameter (mm) | 49.00 |
| Keyway Width (Decimal Inch) | 0.4130 |
| Keyway Width (mm) | 10.5000 |
| Cutting Direction | Right Hand |
