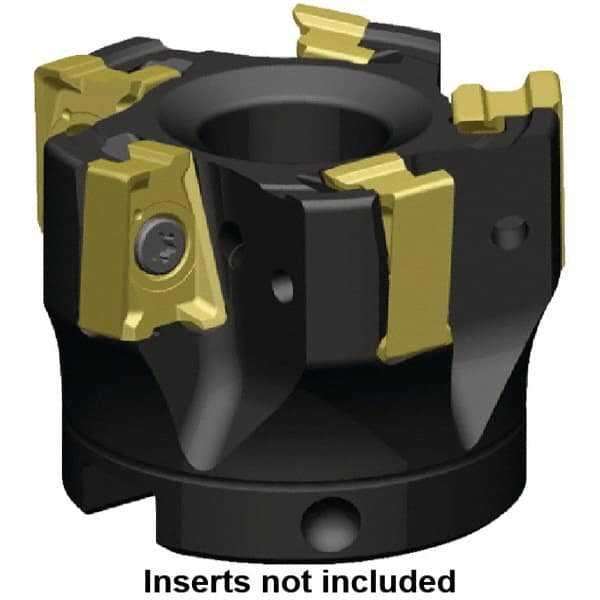

Kennametal - 4 Inserts, 50mm Cut Diam, 22mm Arbor Diam, 15.5mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 40mm High, LNGU15T608SRGE Insert Compatibility, Through Coolant, Series MILL 4-15
Item #: 47499801
Brand: Kennametal
Model #: 5698436
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Arbor Hole Diameter (mm) | 22.00 |
| Lead Angle | 0 |
| Overall Height (mm) | 40.00 |
| Insert Compatibility | LNGU15T608SRGE |
| Series | MILL 4-15 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 15.50 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Cutter Style | M4 |
| Number of Flutes | 4 |
| Hub Diameter (mm) | 42.00 |
| Maximum Body Diameter (Decimal Inch) | 1.8860 |
| Maximum RPM | 16300 |
| Coolant Hole Diameter (Decimal Inch) | 0.1180 |
| Toolholder Material | Steel |
