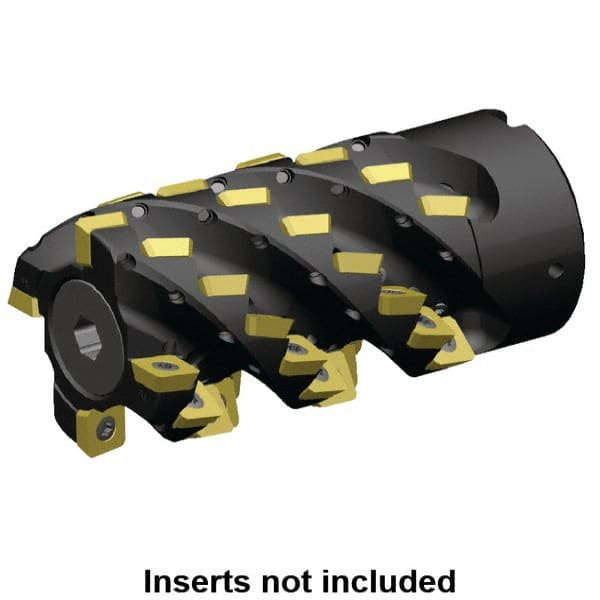

Kennametal - 60 Inserts, 80mm Cut Diam, 32mm Arbor Diam, 110mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 143mm High, SD.. 1204.. Insert Compatibility, Through Coolant, Series 5230VS12
Item #: 47499918
Brand: Kennametal
Model #: 5673236
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Arbor Hole Diameter (mm) | 32.00 |
| Lead Angle | 0 |
| Overall Height (mm) | 143.00 |
| Insert Compatibility | SD.. 1204.. |
| Series | 5230VS12 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 110.00 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 60 |
| Insert Holding Method | Screw |
| Cutter Style | 5230 |
| Number of Flutes | 5 |
| Hub Diameter (mm) | 74.00 |
| Maximum Body Diameter (Decimal Inch) | 3.0390 |
| Maximum RPM | 18500 |
| Coolant Hole Diameter (Decimal Inch) | 0.1180 |
| Toolholder Material | Steel |
