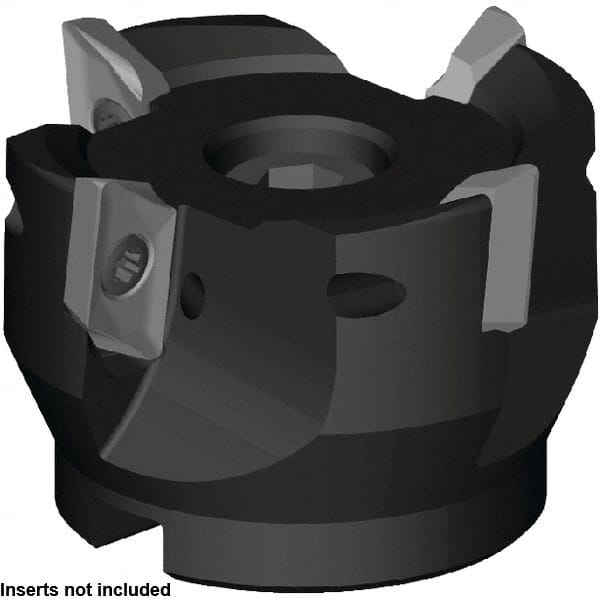

Kennametal - 5 Inserts, 63mm Cut Diam, 22mm Arbor Diam, 16mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 45mm High, ZDET 16M5..721 Insert Compatibility, Through Coolant, Series 5720VZ16
Item #: 47500012
Brand: Kennametal
Model #: 5673528
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.00 |
| Arbor Hole Diameter (mm) | 22.00 |
| Lead Angle | 0 |
| Overall Height (mm) | 45.00 |
| Insert Compatibility | ZDET 16M5..721 |
| Series | 5720VZ16 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 16.00 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Cutter Style | 5720 |
| Number of Flutes | 5 |
| Hub Diameter (mm) | 50.00 |
| Maximum Body Diameter (Decimal Inch) | 2.3530 |
| Maximum RPM | 26000 |
| Coolant Hole Diameter (Decimal Inch) | 0.1380 |
| Toolholder Material | Steel |
