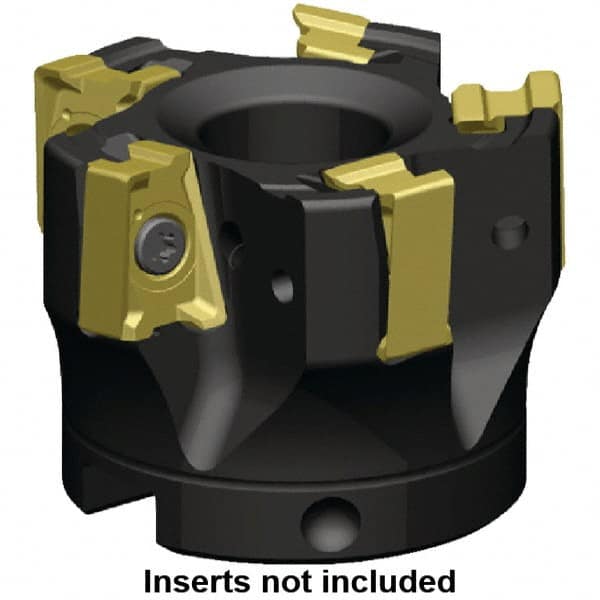

Kennametal - 8 Inserts, 6" Cut Diam, 2" Arbor Diam, 15.5mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 2.38" High, LNGU15T608SRGE Insert Compatibility, Through Coolant, Series MILL 4-15
Item #: 47500038
Brand: Kennametal
Model #: 5702497
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 6 |
| Cutting Diameter (Decimal Inch) | 6.0000 |
| Arbor Hole Diameter (Inch) | 2 |
| Lead Angle | 0 |
| Overall Height (Decimal Inch) | 2.3800 |
| Insert Compatibility | LNGU15T608SRGE |
| Series | MILL 4-15 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 15.50 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Cutter Style | M4 |
| Number of Flutes | 8 |
| Hub Diameter (mm) | 124.00 |
| Maximum Body Diameter (Decimal Inch) | 5.8710 |
| Maximum RPM | 8600 |
| Coolant Hole Diameter (Decimal Inch) | 0.1180 |
| Toolholder Material | Steel |
