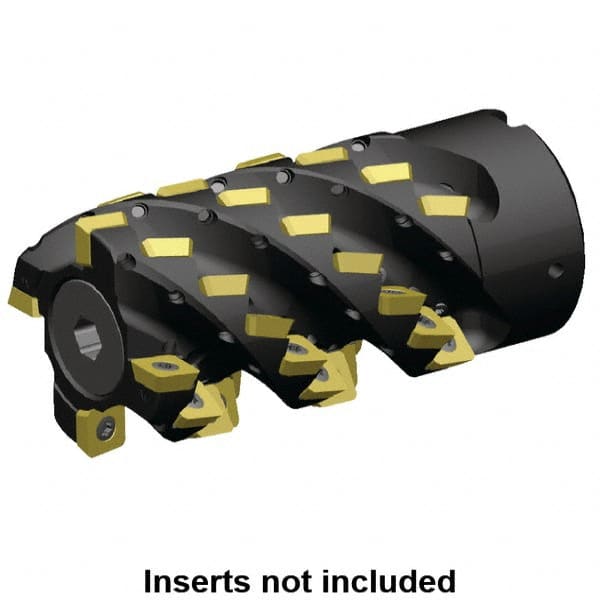

Kennametal - 84 Inserts, 100mm Cut Diam, 40mm Arbor Diam, 133mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 165mm High, SD.. 1204.. Insert Compatibility, Through Coolant, Series 5230VS12
Item #: 47500087
Brand: Kennametal
Model #: 5673169
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Arbor Hole Diameter (mm) | 40.00 |
| Lead Angle | 0 |
| Overall Height (mm) | 165.00 |
| Insert Compatibility | SD.. 1204.. |
| Series | 5230VS12 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 133.00 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 84 |
| Insert Holding Method | Screw |
| Cutter Style | 5230 |
| Number of Flutes | 6 |
| Hub Diameter (mm) | 94.00 |
| Maximum Body Diameter (Decimal Inch) | 3.8270 |
| Maximum RPM | 16000 |
| Coolant Hole Diameter (Decimal Inch) | 0.1180 |
| Toolholder Material | Steel |
