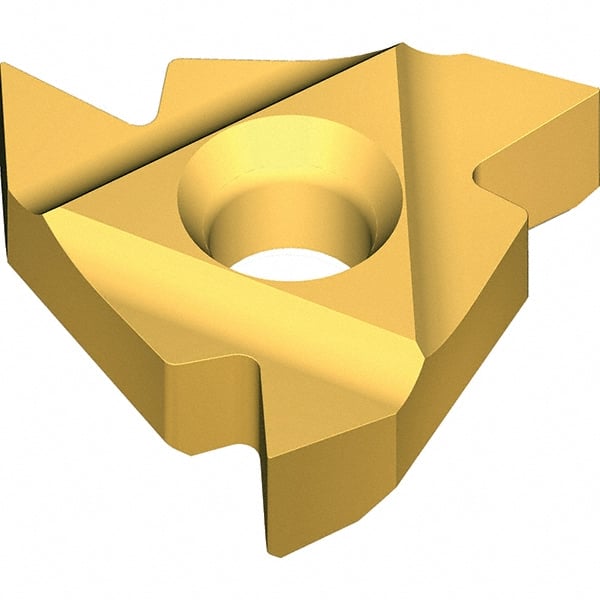

Vargus - 5ER External Right Hand ISO Laydown Threading Insert - Grade VKX, TiN Coated Carbide, 15.88mm Inscribed Circle
Item #: 47524830
Brand: Vargus
Model #: 021-01644
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 5ER |
| Insert Hand | Right Hand |
| Thread Type | External |
| Thread Standard | ISO |
| Material Grade | Micrograin |
| Manufacturer's Grade | VKX |
| Pitch (mm) | 5.5 |
| Inscribed Circle (mm) | 15.88 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness (Decimal Inch) | 0.2500 |
| Thickness (mm) | 6.35 |
| Included Angle of Threading Tip | 60 |
| Coating | TiN |
| Coating Process | PVD |
| Series | Standard |
