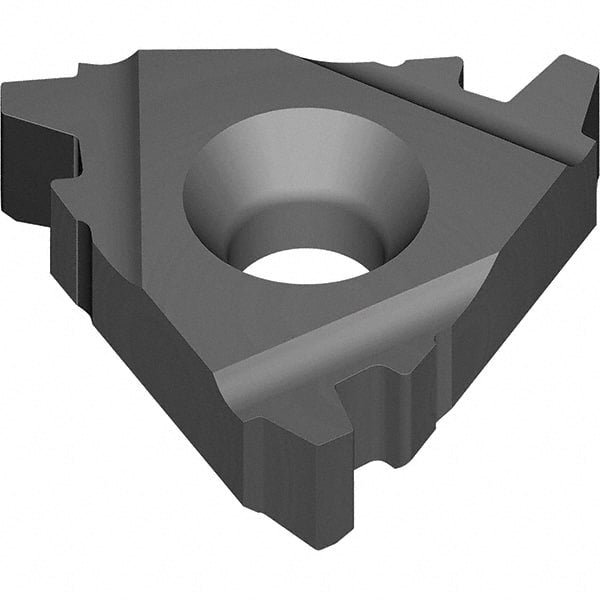

Vargus - 4EL External Left Hand 6 Acme 3G Laydown Threading Insert - Grade VM7, Multi-Layer Coated Carbide
Item #: 47526116
Brand: Vargus
Model #: 021-01354
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 4EL |
| Insert Hand | Left Hand |
| Thread Type | External |
| Thread Standard | ACME 3G |
| Material Grade | Micrograin |
| Manufacturer's Grade | VM7 |
| Threads Per Inch | 6 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1874 |
| Thickness (mm) | 4.76 |
| Included Angle of Threading Tip | 29 |
| Coating | Multi-Layer |
| Coating Process | PVD |
| Series | Standard |
