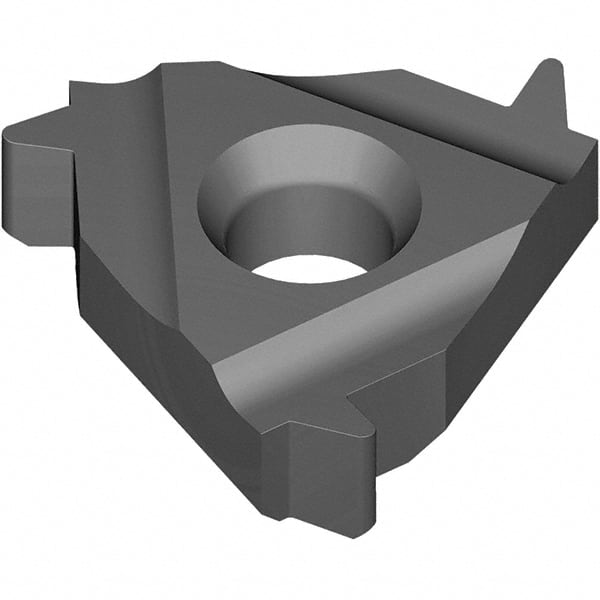

Vargus - 4EL External Left Hand SAGE Laydown Threading Insert - Grade VTX, TiAIN Coated Carbide
Item #: 47527668
Brand: Vargus
Model #: 021-07125
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 4EL |
| Insert Hand | Left Hand |
| Thread Type | External |
| Thread Standard | SAGE |
| Material Grade | Micrograin |
| Manufacturer's Grade | VTX |
| Pitch (mm) | 4 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1874 |
| Thickness (mm) | 4.76 |
| Included Angle of Threading Tip | 10 |
| Coating | TiAIN |
| Coating Process | PVD |
| Series | Standard |
