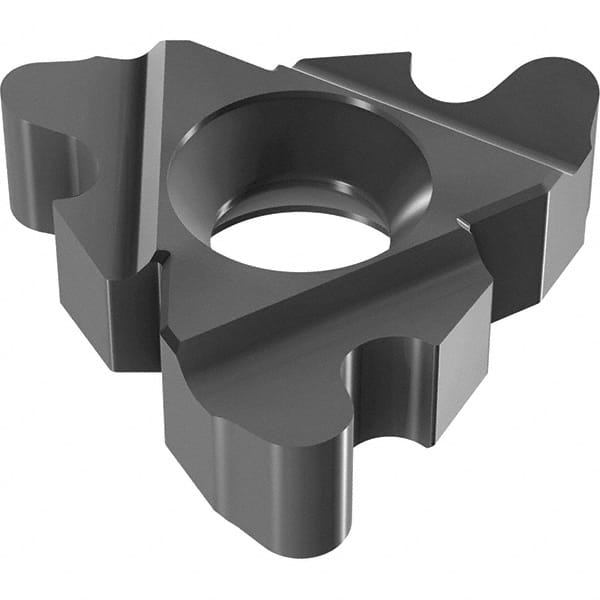

Vargus - 4FIR Internal Right Hand RD20400 Laydown Threading Insert - Grade VTX, TiAIN Coated Carbide
Item #: 47528047
Brand: Vargus
Model #: 070-00205
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 4FIR |
| Insert Hand | Right Hand |
| Thread Type | Internal |
| Thread Standard | RD20400 |
| Material Grade | Micrograin |
| Manufacturer's Grade | VTX |
| Pitch (mm) | 6 |
| Inscribed Circle (Decimal Inch) | 0.5240 |
| Thickness (Decimal Inch) | 0.2047 |
| Thickness (mm) | 5.20 |
| Included Angle of Threading Tip | 30 |
| Coating | TiAIN |
| Coating Process | PVD |
| Series | F Style |
