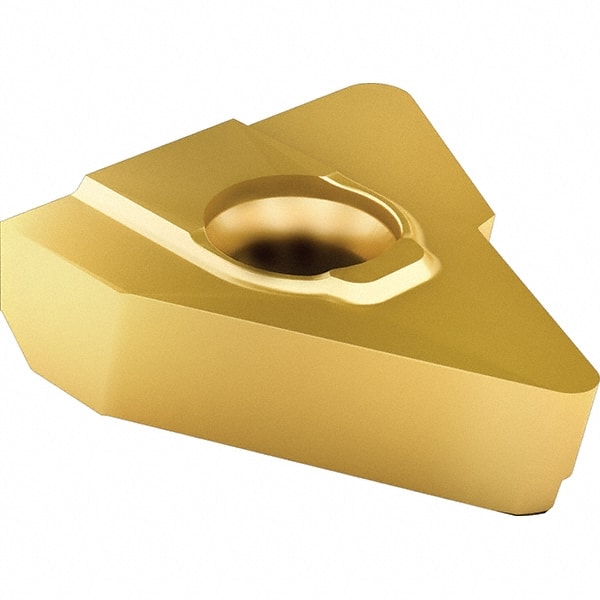

Vargus - 5MGIR Internal Right Hand 2 Acme 3G Laydown Threading Insert - Grade VKX, TiN Coated Carbide, 15.88mm Inscribed Circle
Item #: 47530035
Brand: Vargus
Model #: 055-00022
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 5MGIR |
| Insert Hand | Right Hand |
| Thread Type | Internal |
| Thread Standard | ACME 3G |
| Material Grade | Micrograin |
| Manufacturer's Grade | VKX |
| Threads Per Inch | 2 |
| Inscribed Circle (mm) | 15.88 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Thickness (Decimal Inch) | 0.2500 |
| Thickness (mm) | 6.35 |
| Included Angle of Threading Tip | 29 |
| Coating | TiN |
| Coating Process | PVD |
| Series | Megaline |
