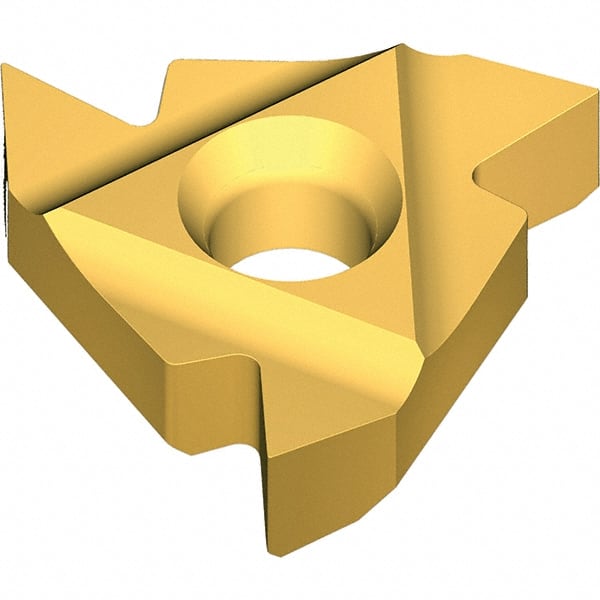

Vargus - 6.0KIL Internal Left Hand 27 NPT Laydown Threading Insert - Grade VKX, TiN Coated Carbide, 6mm Inscribed Circle
Item #: 47531280
Brand: Vargus
Model #: 028-00371
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 6.0KIL |
| Insert Hand | Left Hand |
| Thread Type | Internal |
| Thread Standard | NPT |
| Material Grade | Micrograin |
| Manufacturer's Grade | VKX |
| Threads Per Inch | 27 |
| Inscribed Circle (mm) | 6.00 |
| Inscribed Circle (Decimal Inch) | 0.2360 |
| Thickness (Decimal Inch) | 0.1024 |
| Thickness (mm) | 2.60 |
| Included Angle of Threading Tip | 60 |
| Coating | TiN |
| Coating Process | PVD |
| Series | Mini 3 |
