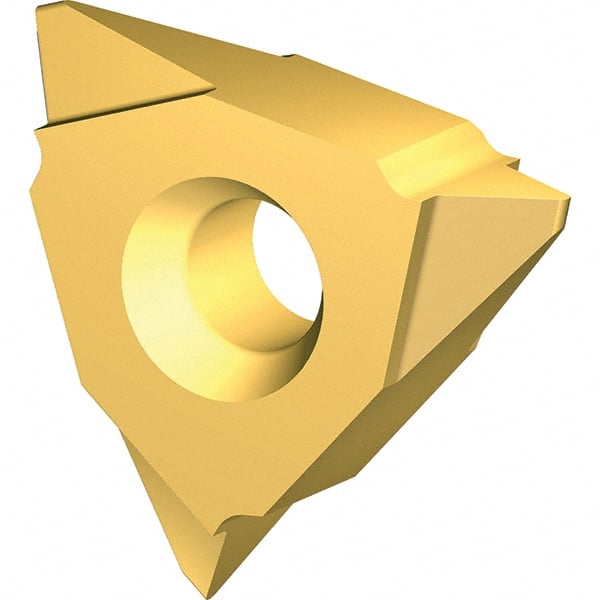

Vargus - 2VEL External Left Hand 11 W Laydown Threading Insert - Grade VKX, TiN Coated Carbide
Item #: 47542931
Brand: Vargus
Model #: 024-00006
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 2VEL |
| Insert Hand | Left Hand |
| Thread Type | External |
| Thread Standard | W |
| Material Grade | Micrograin |
| Manufacturer's Grade | VKX |
| Threads Per Inch | 11 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (Decimal Inch) | 0.1248 |
| Thickness (mm) | 3.17 |
| Included Angle of Threading Tip | 55 |
| Coating | TiN |
| Coating Process | PVD |
| Series | Slim Throat |
