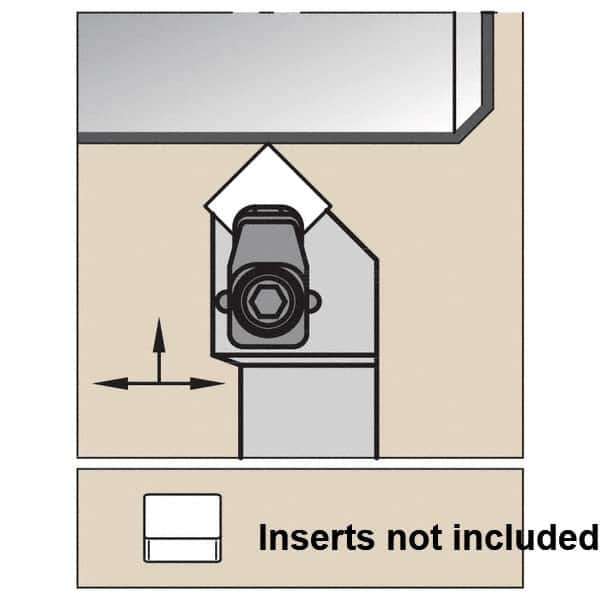

Kennametal - CSSN, Left Hand Cut, 45° Lead Angle, 32mm Shank Height x 25mm Shank Width, Negative Rake Indexable Turning Toolholder - 161.69mm OAL, SN.N 120408 Insert Compatibility, Series CSSN
Item #: 47547385
Brand: Kennametal
Model #: 1261353
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | CSSN |
| Rake | Negative |
| Rake Angle | -8 |
| Series | CSSN |
| Lead Angle | 45 |
| Shank Width (mm) | 25.00 |
| Shank Height (mm) | 32.00 |
| Overall Length (mm) | 161.69 |
| Insert Compatibility | SN.N 120408 |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 32.00 |
| Head Length (mm) | 35.00 |
| Toolholder Material | Steel |
