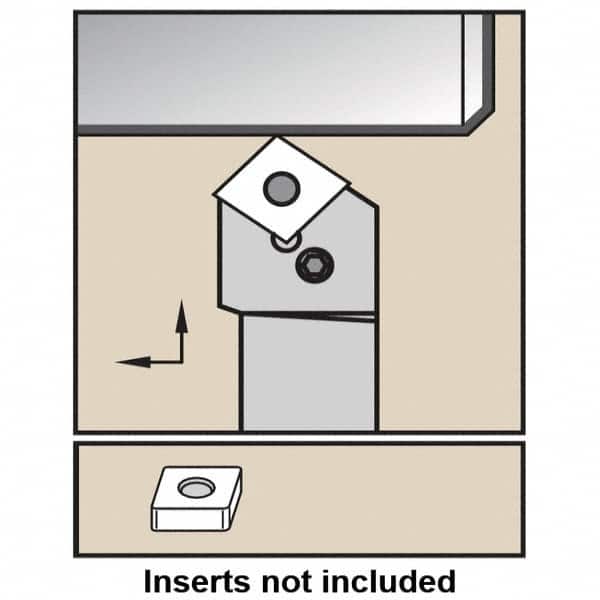

Kennametal - PCSN, Right Hand Cut, 45° Lead Angle, 32mm Shank Height x 32mm Shank Width, Negative Rake Indexable Turning Toolholder - 170mm OAL, CN... 190612 Insert Compatibility, Series PCSN
Item #: 47548011
Brand: Kennametal
Model #: 1244819
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | PCSN |
| Rake | Negative |
| Rake Angle | -8 |
| Series | PCSN |
| Lead Angle | 45 |
| Shank Width (mm) | 32.00 |
| Shank Height (mm) | 32.00 |
| Overall Length (mm) | 170.00 |
| Insert Compatibility | CN... 190612 |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 40.00 |
| Head Length (mm) | 37.50 |
| Toolholder Material | Steel |
