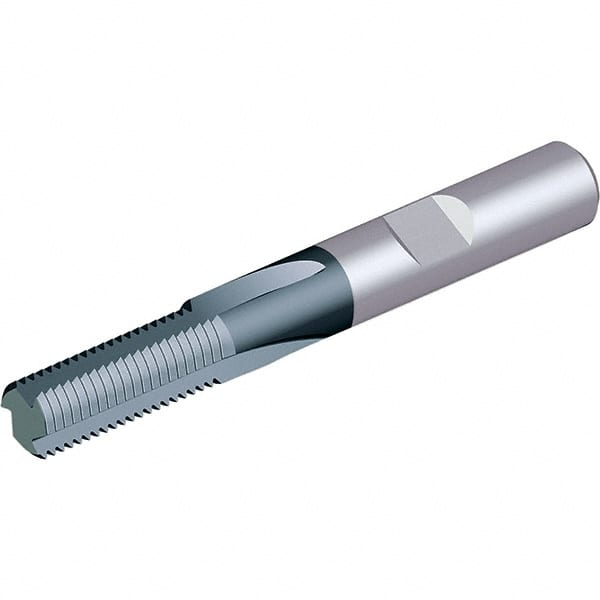

Vargus - M8x0.75 Thread, 0.2362" Shank Diam, TiAlN Coating, Solid Carbide Straight Flute Thread Mill - 3 Flutes, 2.244" OAL, M8 Min Noml Diamter
Item #: 47571914
Brand: Vargus
Model #: 80986
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and commonly used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Pitch (mm) | 0.75 |
| Thread Size (mm) | M8x0.75 |
| Minimum Nominal Diameter (mm) | M8 |
| Material | Solid Carbide |
| Thread Type | Internal |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Number of Flutes | 3 |
| Cutting Diameter (Decimal Inch) | 0.2323 |
| Finish/Coating | TiAlN |
| Length of Cut (Decimal Inch) | 0.5906 |
| Thread Standard | ISO |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 2.2440 |
| Through Coolant | No |
| Material Grade | Micrograin |
