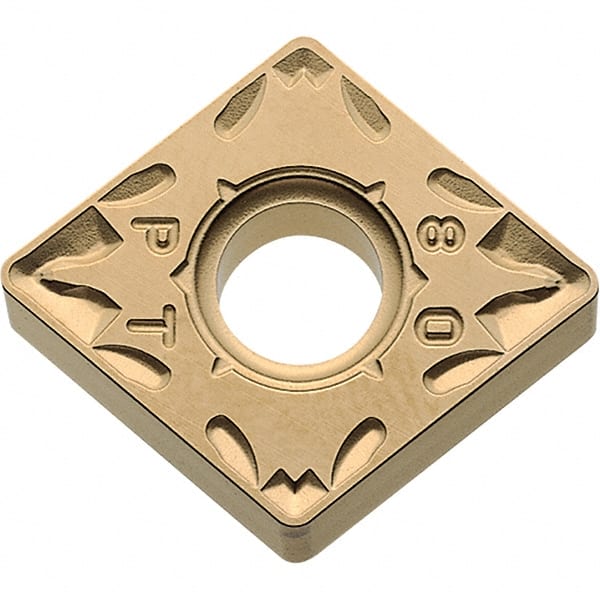

Kyocera - CNMG544 PT Grade CA025P Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 80° Diamond, 5/8" Inscr Circle, 1/4" Thick, 1/16" Corner Radius
Item #: 47582317
Brand: Kyocera
Model #: 8860362
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Insert Size | 544 |
| Material | Carbide |
| Inscribed Circle (Inch) | 5/8 |
| Thickness (Inch) | 1/4 |
| Corner Radius (Inch) | 1/16 |
| Manufacturer's Grade | CA025P |
| Coating | TiCN/Al2O3/TiN |
| Material Grade | Micro Columnar |
| Chip Breaker | PT |
| Hole Diameter (Decimal Inch) | 0.2500 |
| ISO Number | CNMG160616PT |
| Rake | Negative |
| Relief Angle | 0 |
| Coating Process | CVD |
| Manufacturers Catalog Number | CNMG544PT CA025P |
| Primary Workpiece Material | P |
| Included Angle | 80 |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Cutting Edge Style | High Feed Rate |
| Multi Use Application | External Turning, Facing, Boring, Internal Facing |
| MultiUseTool | Yes |
| Shape | Diamond |
