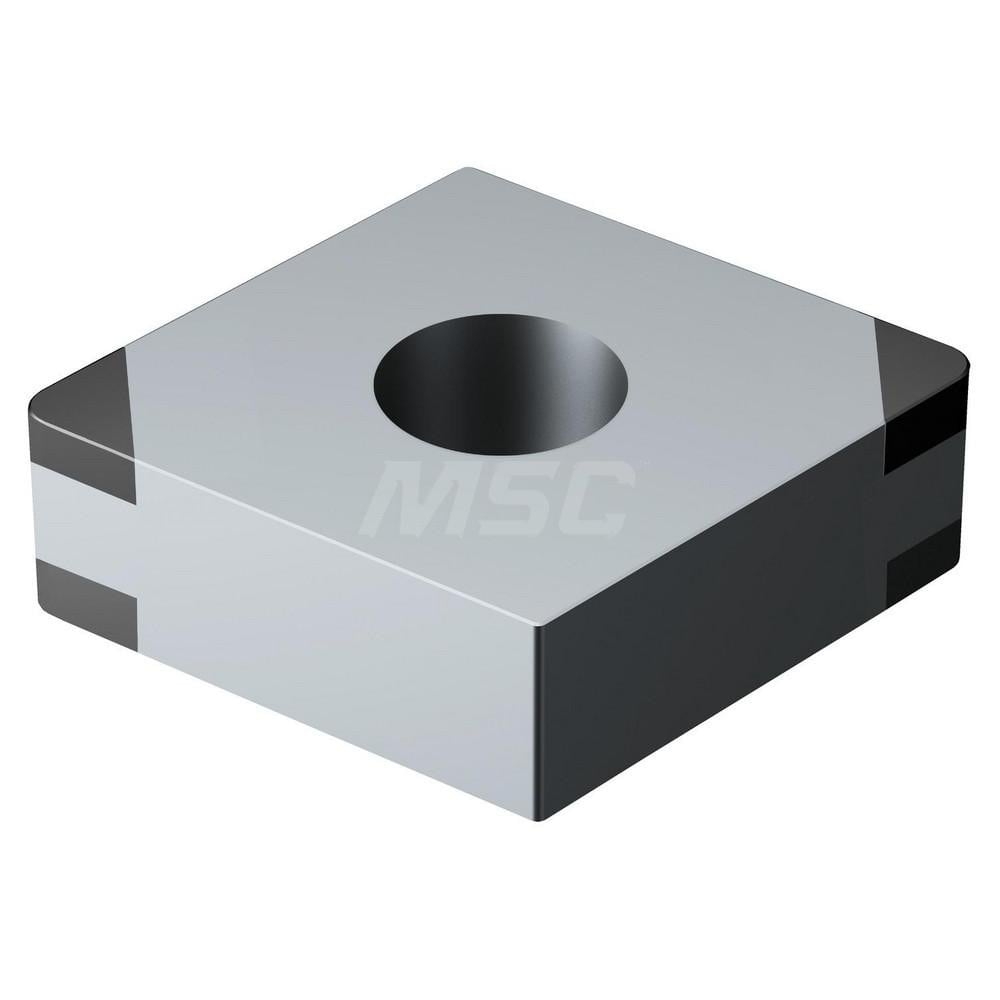

CNGA432S0525H 7125 CBN Turning Insert AlTiCrN Finish, Neutral, 1/2″ Inscribed Circle, 0.0315″ Corner Radius, 3/16″ Thick

Item #: 47588157
Brand: Sandvik Coromant
Model #: 7586834

Product Specifications

Insert Style CNGA

Insert Shape Code C

Insert Size Code 1204

Insert Shape Diamond

Clearance Code N

Tolerance Code G

Insert Material Cubic Boron Nitride

Manufacturer Grade 7125

Hole Diameter (Decimal Inch) 0.2030

Inscribed Circle (Inch) 1/2

Inscribed Circle (Decimal Inch) 0.5000

Insert Holding Method Screw; Clamp

Insert Hand Neutral

Insert Thickness (Inch) 3/16

Insert Thickness (Decimal Inch) 0.1875

Corner Radius (Decimal Inch) 0.0315

Included Angle 80.0

Relief Angle 0

Series T-Max P

Coating Process PVD

Wiper Edge No

Number Of Cutting Edges 4

Primary Workpiece Material Hard Material

Primary Workpiece Material Code H

Ansi Code CNGA432S0525H7125

Iso Code CNGA120408S01525H 7125

Cutting Direction Neutral

Chip Breaker A

Coating/Finish AlTiCrN

Insert Style	CNGA
Insert Shape Code	C
Insert Size Code	1204
Insert Shape	Diamond
Clearance Code	N
Tolerance Code	G
Insert Material	Cubic Boron Nitride
Manufacturer Grade	7125
Hole Diameter (Decimal Inch)	0.2030
Inscribed Circle (Inch)	1/2
Inscribed Circle (Decimal Inch)	0.5000
Insert Holding Method	Screw; Clamp
Insert Hand	Neutral
Insert Thickness (Inch)	3/16
Insert Thickness (Decimal Inch)	0.1875
Corner Radius (Decimal Inch)	0.0315
Included Angle	80.0
Relief Angle	0
Series	T-Max P
Coating Process	PVD
Wiper Edge	No
Number Of Cutting Edges	4
Primary Workpiece Material	Hard Material
Primary Workpiece Material Code	H
Ansi Code	CNGA432S0525H7125
Iso Code	CNGA120408S01525H 7125
Cutting Direction	Neutral
Chip Breaker	A
Coating/Finish	AlTiCrN
