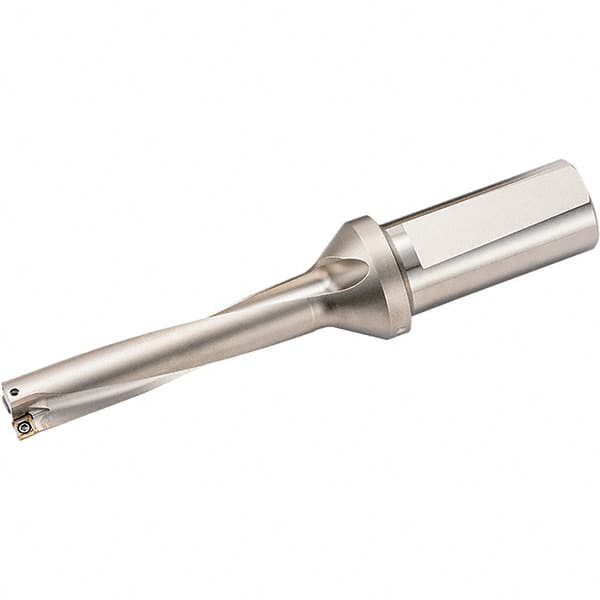

Kyocera - 4.06" Max Drill Depth, 5xD, 0.812" Diam, Indexable Insert Drill - 2 Inserts, 1" Shank Diam, Weldon Shank
Item #: 47588819
Brand: Kyocera
Model #: 8859071
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DRV |
| Drill Diameter (Decimal Inch) | 0.8120 |
| Maximum Drill Depth (Decimal Inch) | 4.0600 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Toolholder Material | High Speed Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.812 |
| Overall Length/Projection (Decimal Inch) | 7.0285 |
| Insert Compatibility | SCMT 060205-E & SCMT060210-I |
| Flute Length (Decimal Inch) | 4.0600 |
| Body Length (Decimal Inch) | 4.9025 |
| Shank Length (Decimal Inch) | 2.1300 |
| Collar Diameter (Decimal Inch) | 1.2600 |
| Series | DRV Magic Drill |
